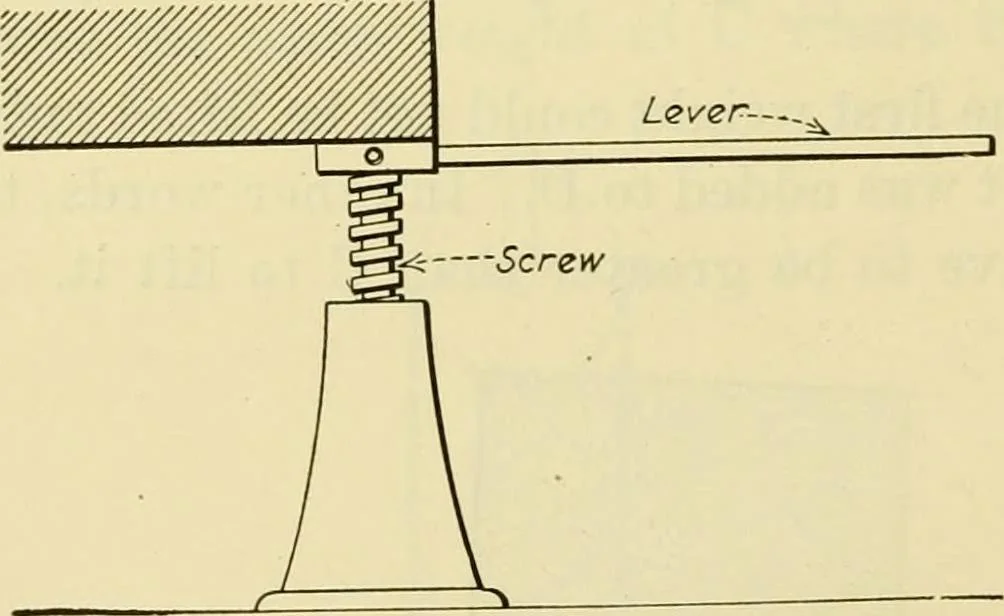

illustrated in Fig.18. By the aid of a wedge, a man is enabled to raise atremendous weight. It must be constantly borne in mindthat the same power is necessary to raise a given weighta given distance. A small force applied for a greatlength of time is equal to a great force applied for ashort time.… … Fig. 19—Showing the use of the jack The screw is an inclined plane and a great force canbe applied by its aid. The jack (Fig. 19) is an applica-tion of the screw or inclined plane, and Avith it a singleman can lift tremendous weights. The jack is really acombination of the inclined plane and the…
