Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 40

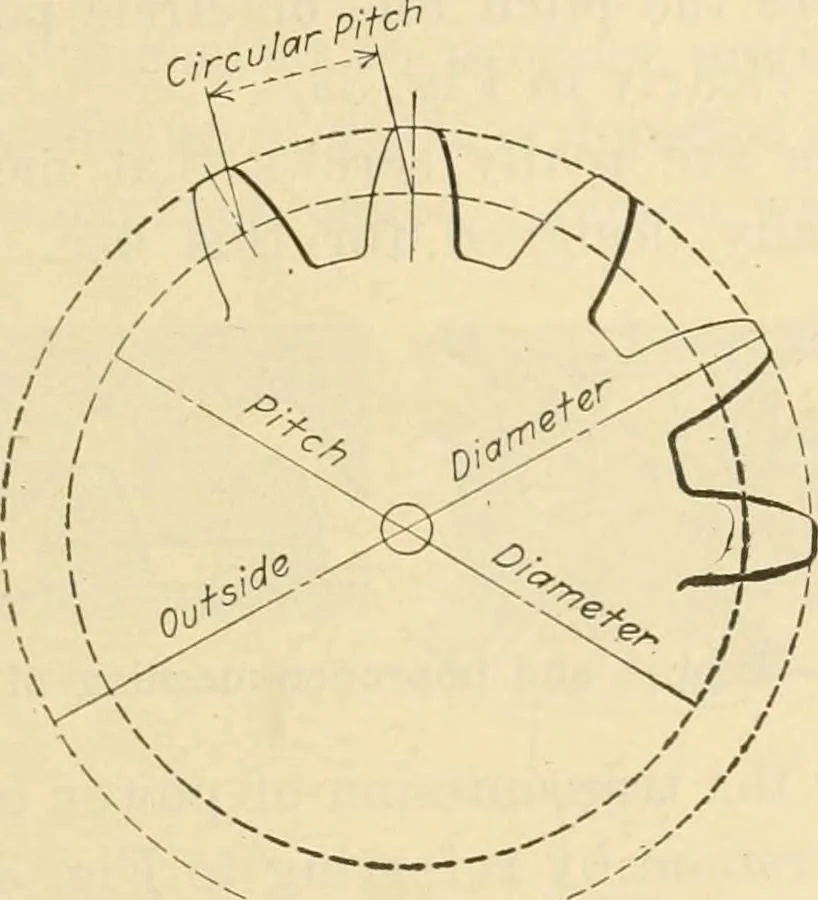

t of A. It will be seen that A must revolve twicefor every revolution made by B. If the circumferenceof B was five times greater than that of A, the speedwould be one-fifth that of A. It mil be noticed that twoor more gears revolving together act as a system of con-tinuous levers. Gear wheels are… … Fig- 33—Showing the meaning of circular pitch, pitch diameterand outside diameter The pitch circle or diameter of a gear wheel is reallythe diameter of a plain cylinder without teeth that the ■l^or/77
