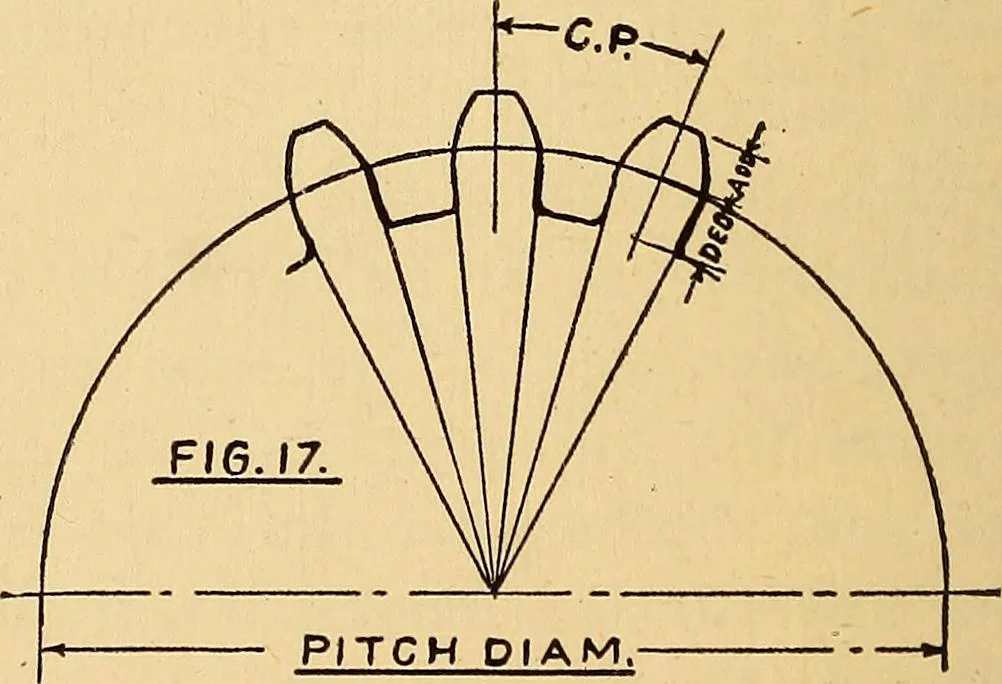

P.D.- n 2n n and the pitch diameter of wheel = sin X or sin 180° n GEAR WHEELS—PITCH There are two kindsof pitch in gear wheels—circular pitch (C.P.)(•see Fig. 17), the curvedistance from center ofone tooth to the centerof the next tooth meas-ured on the pitch circle,and diametral pitch(D.P.) which… … Power Transmission 45 The pitch in gears, just as with sprocket wheels, deter-mines the relative revolutions of the drive and drivenwheels, and the same formula TxR= 7\Xi?i holds goodfor gears also. PITCH CIRCLE The circle whose circumference may be divided by thecircular pitch without a remainder,…
