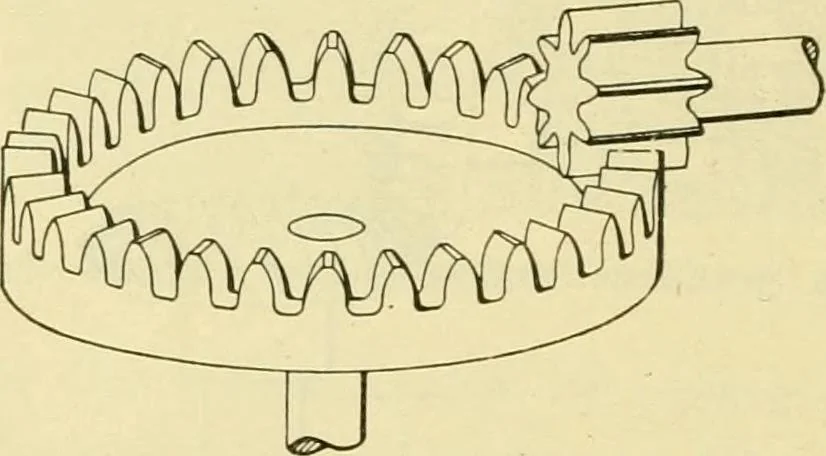

r or crown gears. The teeth in miter gearsare mounted at 45 degrees so that when they mesh theshafts upon which they are mounted will be at right 42 Shop Practice for Home Mechanics angles. The arrangement is illnstrated in Fig. 37. Bevelgears are shown in Fig. 38. Crowm gears are nsed manytimes to… … Fig. 39—A crown gear and pinion formula will be considered. The shaft A (Fig. 40) isto be driven and calculations must be made to determinethe proper gear to use. The power necessary to turn
