Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 79

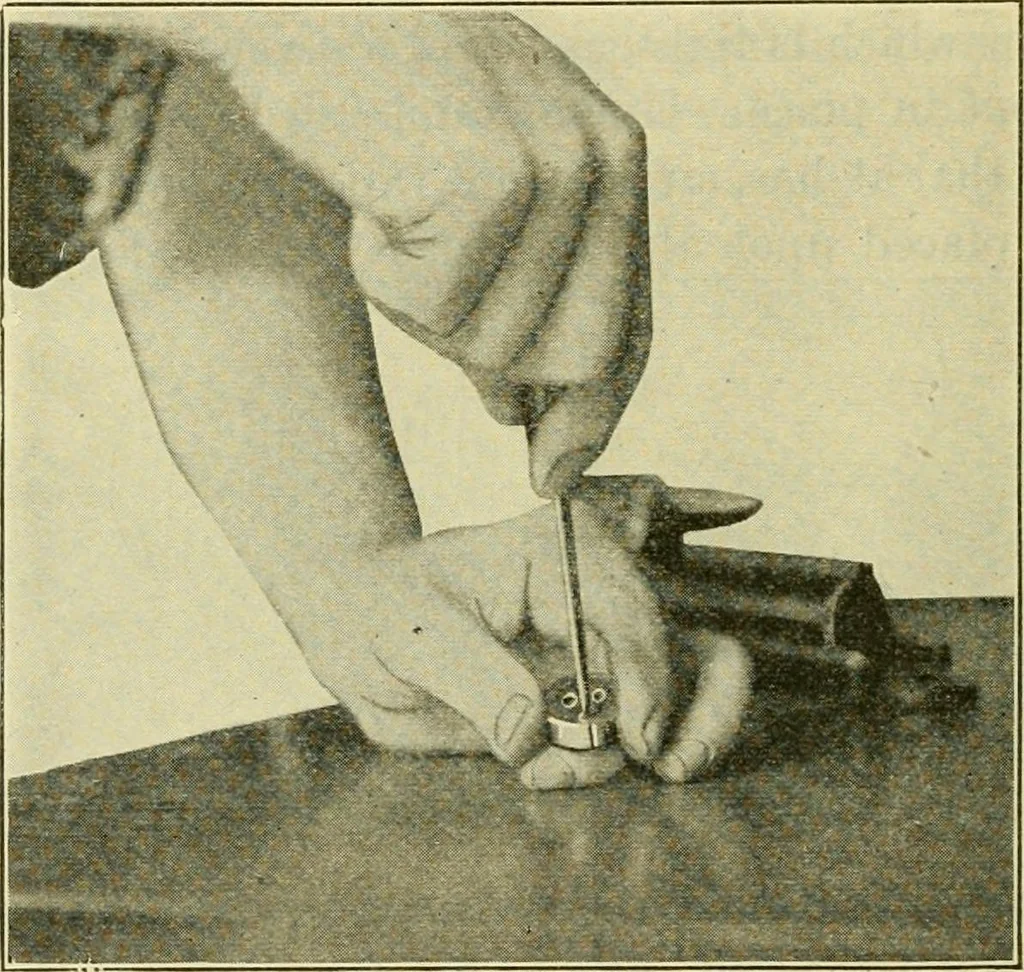

ith a screw ontheir periphery by means of which it is possible to adjustthem M^thin a thousandth of an inch. This is done with 78 Shop Practice for Home Mechanics a small screwdriver as shown m Fig. 83. In starting adie upon a rod, some caution will have to be exercised inseeing that it is true. If… … Fig. 83—Adjusting a small die with a screwdriver being threaded with a small die it should lie well lubri-cated with machine oil. This will not only assist inkeeping the threads of the die sharp, but will often pre-vent them from breaking when under strain. The stockshould not be revolving too…
