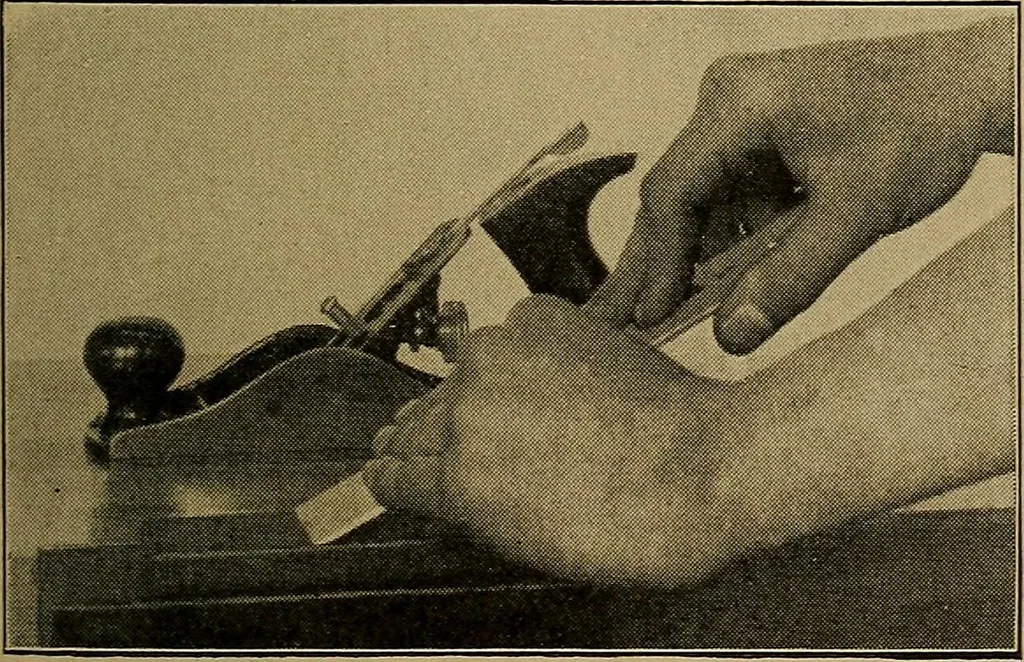

e at which it is held in the plane. To be sure you are getting the correct angle in whetting the plane bit, you may set the plane near the oilstone (Fig. 107) and compare the angle at which the bit stands in the plane with the angle atwhich you hold thebit while whettingit. You must alwayshold it… … Fig. 107—Whetting Plane Bit 88 WOODWORK FOR THE GRADES After you have become accustomed to using the planesand are strong enough to cut a wide shaving, the plane bitmay be nearly straight across, but in yourfirst work the bit should be quite round-ing as shown in Fig. 108. In order toproduce this…
