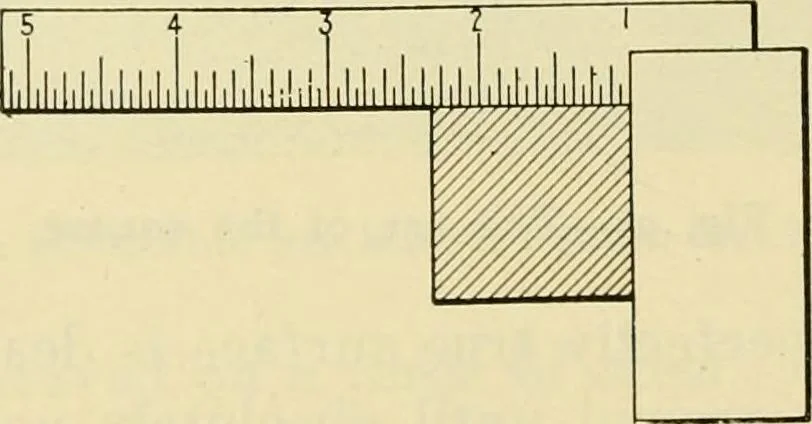

ill to manipulate them prop-erly. A simple pair of calipers consists of two arms riv-eted together at one end in such a way that they milmove upon the rivet as an axis. Hence they can be usedto measure round pieces of work and other odd shapes r\ u Fig. 96—A non-adjustable square where it would not… … Fig 97—Measuring and squaring at the same time stock is then found by applying the calipers to a ruleas shown in Fig. 99. If a piece of work is to be turneddowTi in the lathe to a diameter of 2 in, the calipers arefirst set with the scale. They are then applied to the Measuring Instruments 89 work…
