Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 92

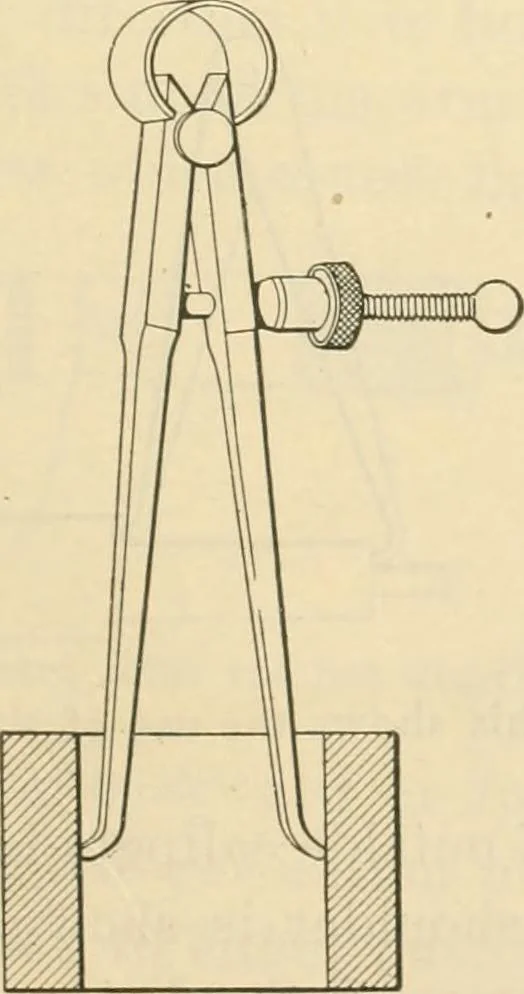

Fig. loi—A pair of inside calipers with fine adjustment making an internal measurement is shown in Fig. 102.Inside calipers are adjusted by means of a square as … Fig. 102—How inside calipers are used 92 Shop Practice for Home Mechanics shown in Fig. 103. The calipers should never be forcedinside a cylinder or other piece of work, as this will causethem to spring. In using calipers they should be appliedto the work very lightly.What is known as a shoulder…
Machine-shop practice · Handicraft
