Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 27

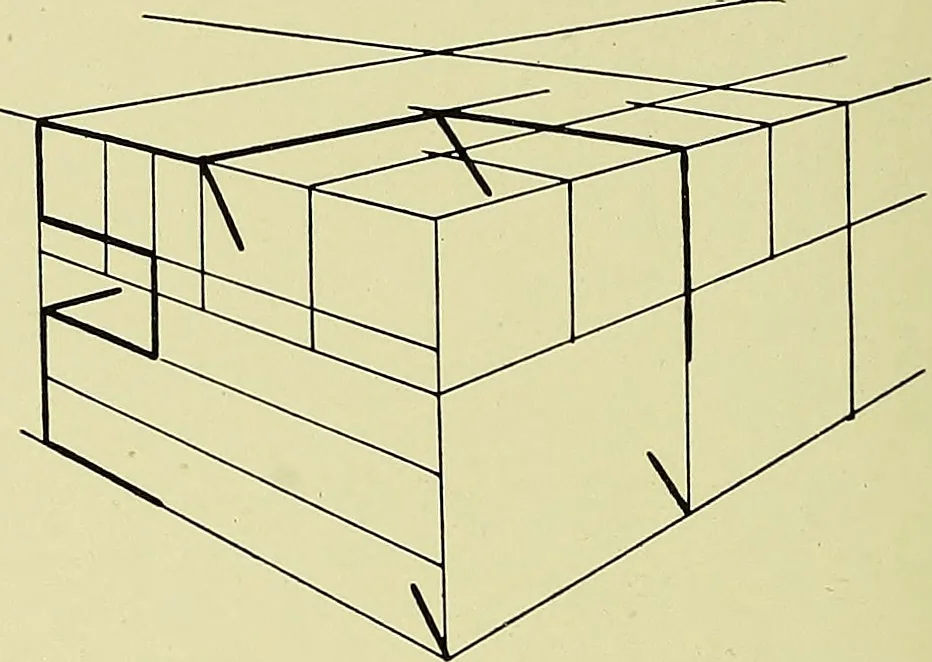

he orthographic, completing it wherelines have been omitted on the copy. 3. Draw the enclosing solid representing a block2i/2x 4x 4. Figure 8 illustrates the constructivelay-out. 4. Sketch the slant lines as you did on the lastplate, and complete the left hand and upper surfaces. 5. Copy the… … Figure 8 object as it would appear to a spectator. They havebeen included in this plate as a matter of practice. FREcZH.^ND QKgrrcH OF BJ-OCK h V
Mechanical drawing
