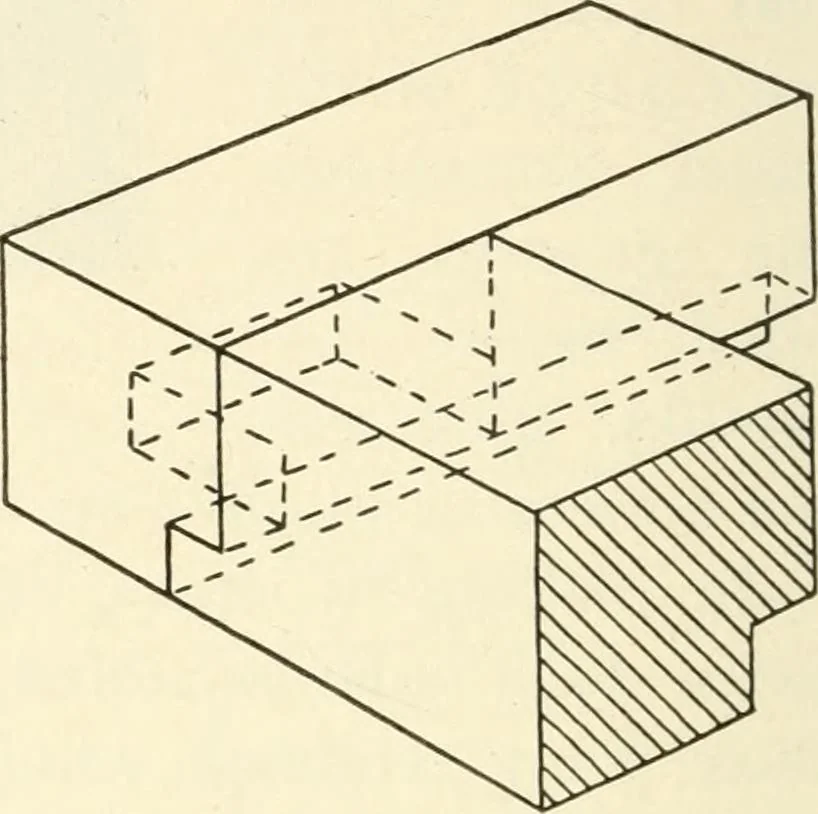

lane. In rabbeting across the grain the spur must be set parallel with the edges of the cutter. Since the parts of the frame are rabbeted the full lengthfor convenience, a special joint is neces-sary at the corners. The mortises arecut before the rabbets are worked. Thetenons are laid out so that… … Fig. 442. Joint for RabbetedFrame.
