Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 52

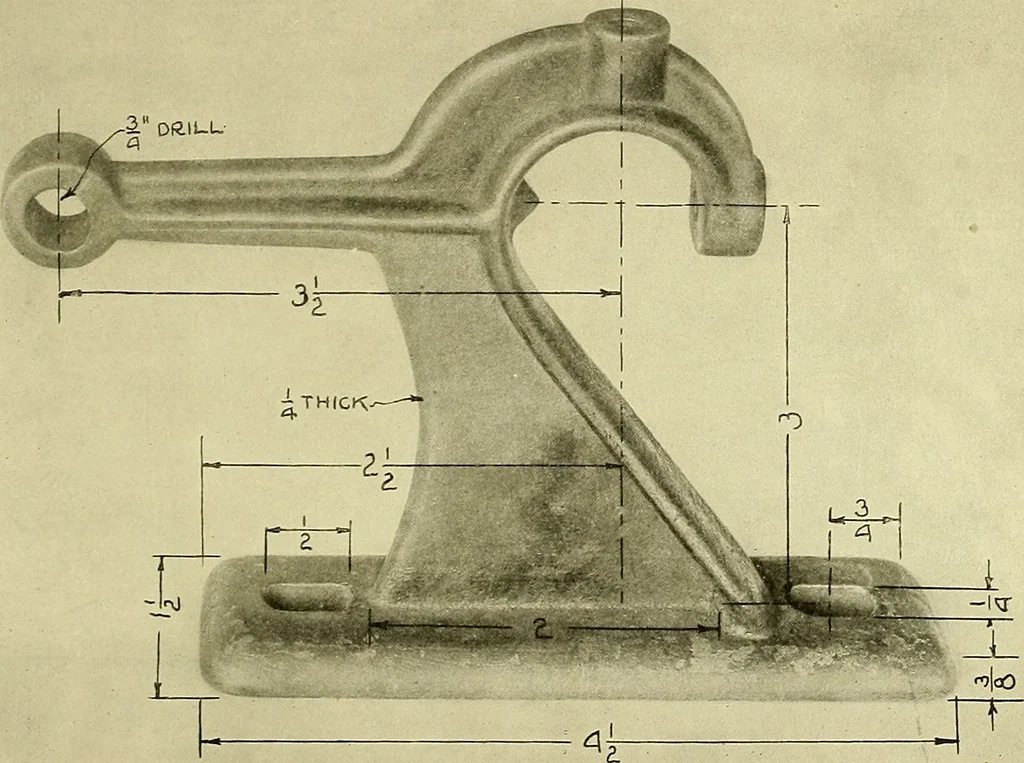

Figure 19 48 SHOPSKETCHING Plate 17 Figure 20 illustrates the body of a hanger and the front and side views, put on dimension lines, place it is required to make a working sketch from this the dimensions that are given, and estimate the figure. A few dimensions are given—just enough to others. This… … Figure 20 50 SHOP SKETCHING Plate 18 Make a perspective sketch from a piece of furni-ture, but do not dimension it. The cabinet shopprojects can be used as models, or the tables, benches,stools, cases, desks, chairs, etc., in the drawing roomcan be utilized. Each student should be assigned…
Mechanical drawing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
