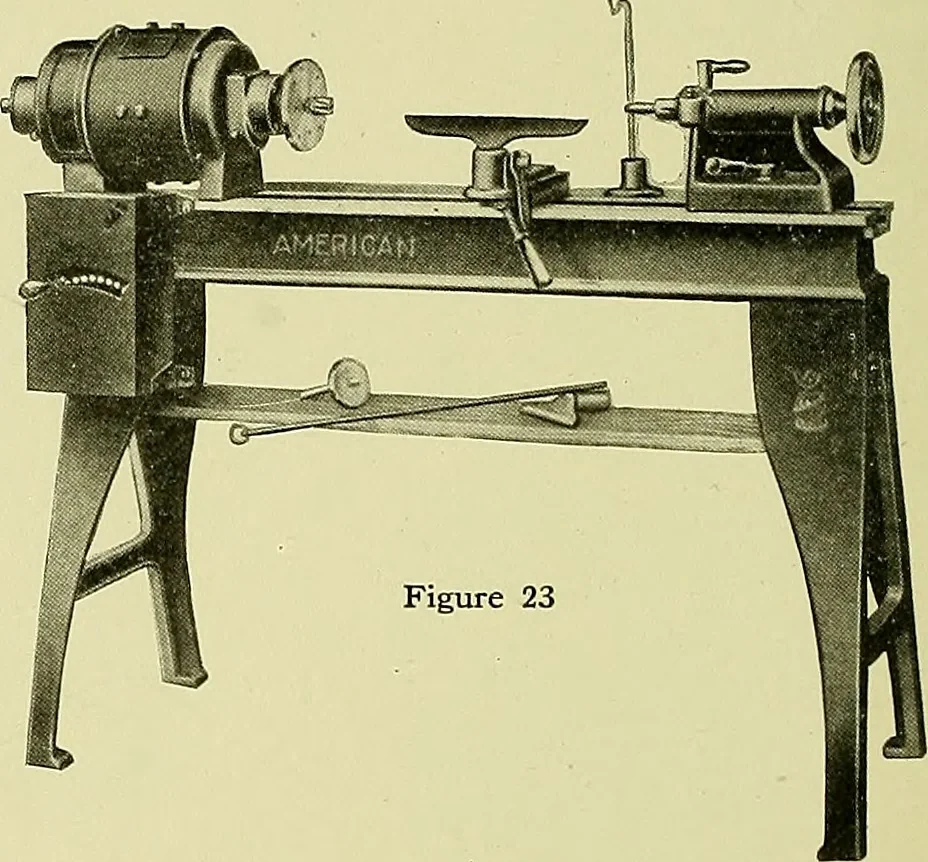

it. Considering the lathe as an example, one studentmight detail the headstock, another the tailstock,another the tool rest, a fourth the bed, etc., thus com-pleting a set of sketches of a large machine. Or,if time permits, one student could do this alone,other students working on other machines.… … Sketching on Cross-Section Paper 54 SHOP SKETCHING Sketching on Cross-Section Paper Some draftsmen prefer to make their sketches oncross section paper. Figure 24 illustrates such asketch. This practice has a number of advantagesover the plain paper sketch, especially if the paperused is ruled off…
