Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 64

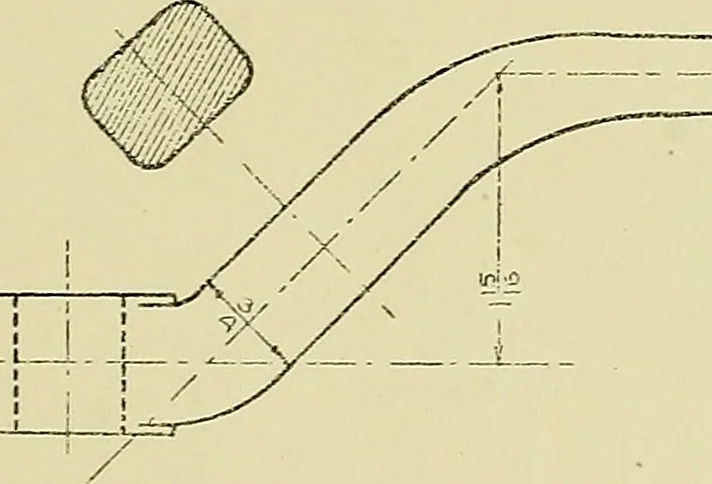

he center line atany chosen point to show the shape of the object atthat point. A revolved section is often used to il-lustrate the shape of the spokes in fly-wheels and pulleys, and is sometimes drawn on the object itselfrather than to the side as illustrated. The problem in sketching is to make a… … -i-« T Supplementary Plate 3 62 SHOP SKETCHING Supplementary Plate 4 Plate 4 illustrates two working sketches, one of a it being imaginea that a part of the object has been clamp handle such as is sometimes used to tighten broken away in order to show the threads. This is the tail stock of a wood…
Mechanical drawing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
