Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 74

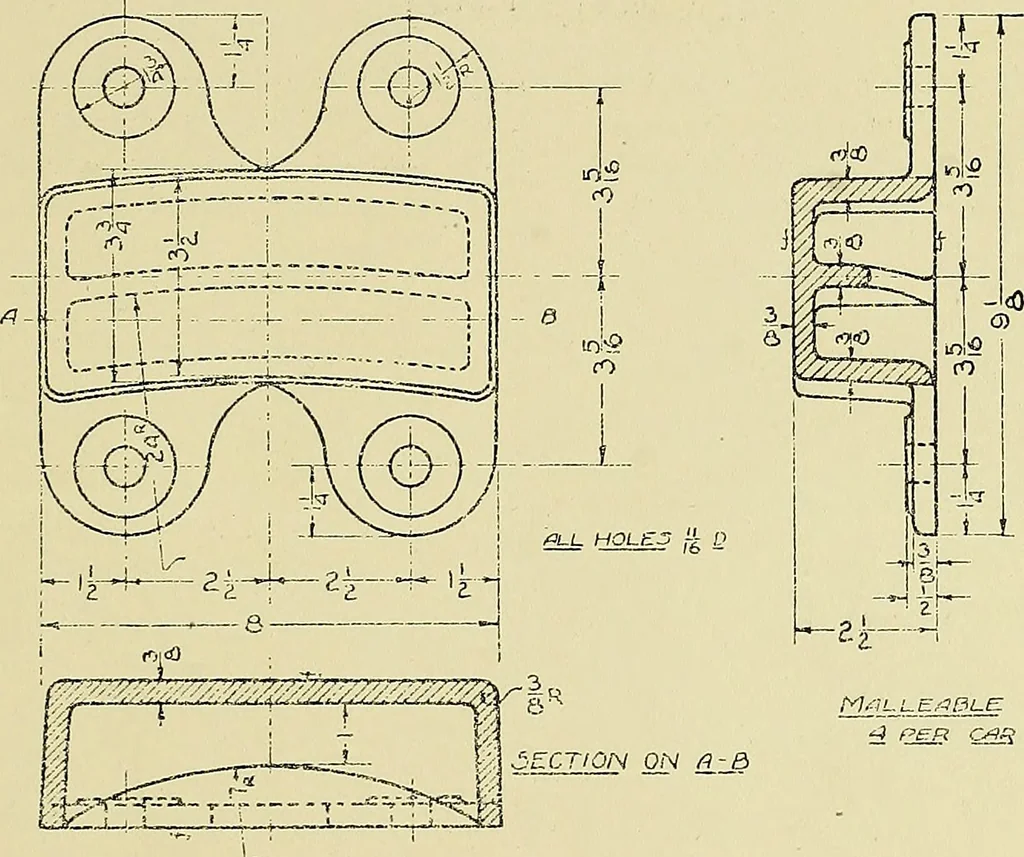

WROUGHT IRON Supplementary Plate 7 70 SHOP SKETCHING Supplementary Plate 8 This bearing shows two views in full section.When it is necessary, any number of sections can beused to illustrate, clearly, the internal constructionof a piece. A large object with many holes inside. such as the cylinder… … M,<iL.i.Ef^BLE. IRON ..J Supplementary Plate 8 72 SHOP SKETCHING Supplementary Plate 9 It will be very good practice for the student totrace out the meaning of the various dotted lines onthis working sketch. As his ijroblem, and to test hisability to read working drawings, the student should…
