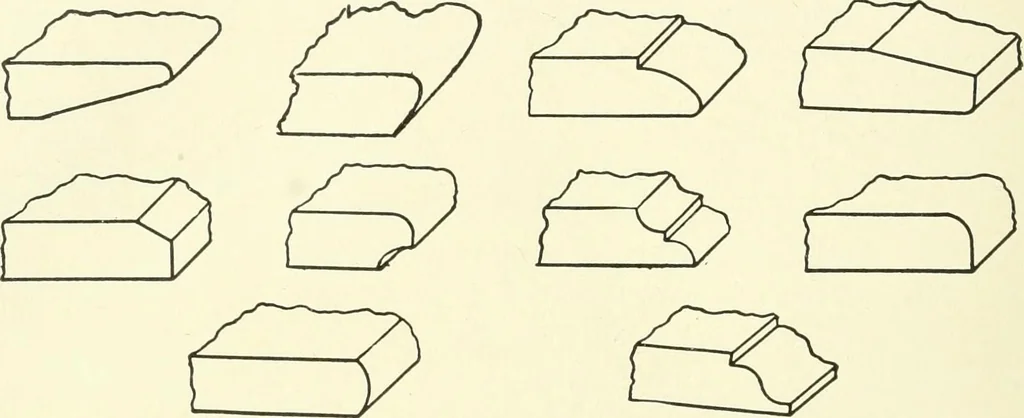

Fig. 473 c V^/AT i: I—\r\r\r^—1 Fig. 474 i66 A Shorter Course in Woodworking will show whether the rabbets are in line, and they can be alteredif necessary. Draw lines on each edge connecting the bottoms of therabbets, or chamfers, and plane down to these lines. Test by sightingand the straight… … Fig- 475 therefore true, by setting the gauge at the thinnest point, gauging aline all around the edge, and planing to the line. Warping or windingof short pieces can be detected by laying a straight-edge diagonallyfrom corner to corner (Fig. 478).
