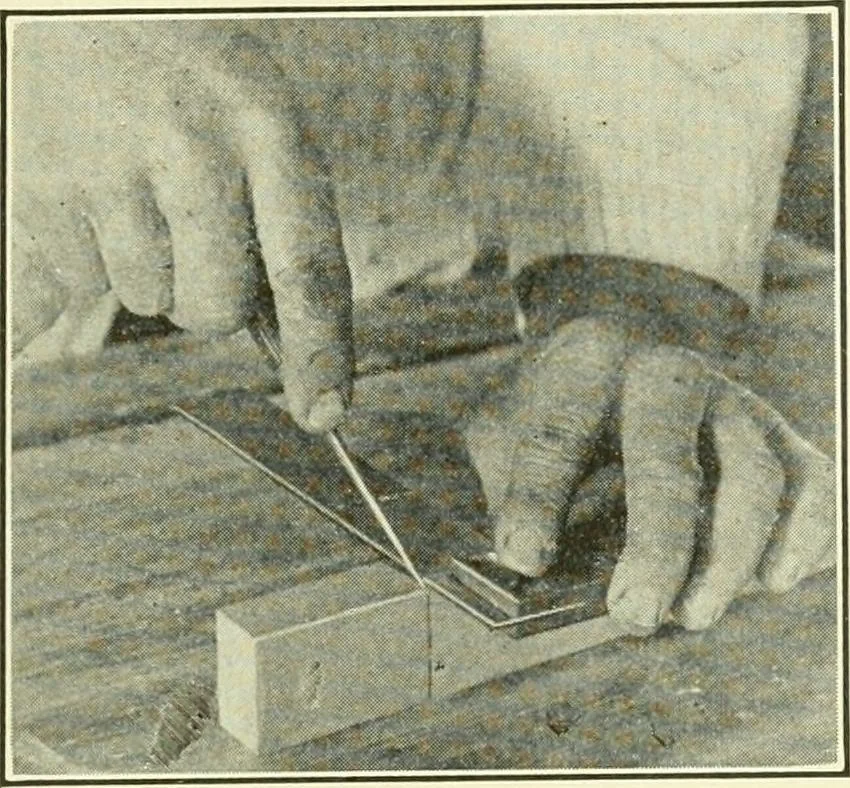

Fig. II Fig. 12 In testing a surface or edge with the try-square (Figs. 12, 14,15), place it at several points. Face the light. The best try-squares are entirely of metal. A medium-sized one(9- or lo-inch blade) is more useful than a small one. A scale is oftenmarked on the blade. Sometimes the end… … bevel is so short that it is accurate only for very small work, (See Bevel, To square across or around an hexag-onal, octagonal, or cylindrical stick, placea rectangular piece between the head ofthe square and the stick (Fig. 17). To lay out a bevel with a square,get out a wedge-shaped piece with…
