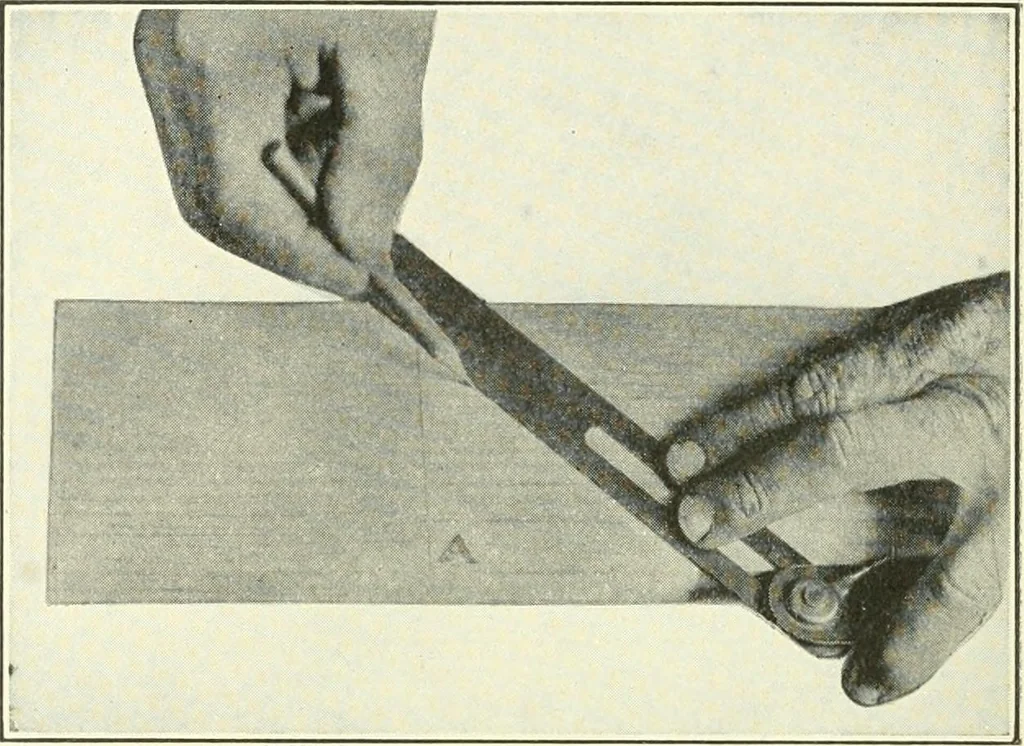

beam, or stem, whichpasses through the block, andcan be set by a thumb-screw to project to the distance required. Aspur or marking-point is inserted near the end of the bar, which has the Fig. 21 12 A Shorter Course in Woodworking divisions of a rulemarked upon it, bywhich to set the spur,but it is… … Fig. 22 1 6 • See that the spur projects from j\ to^-^j Hold gauge and rule as in Fig. 26. Set the spur .^ijl^m ^m at the required distance from the ^^^^^ ^m head by adjusting with the thumbs ^H and forefingers. ^ Tightenthethumb- screw and test the distance with therule (Fig. 2/). Push the end of…
