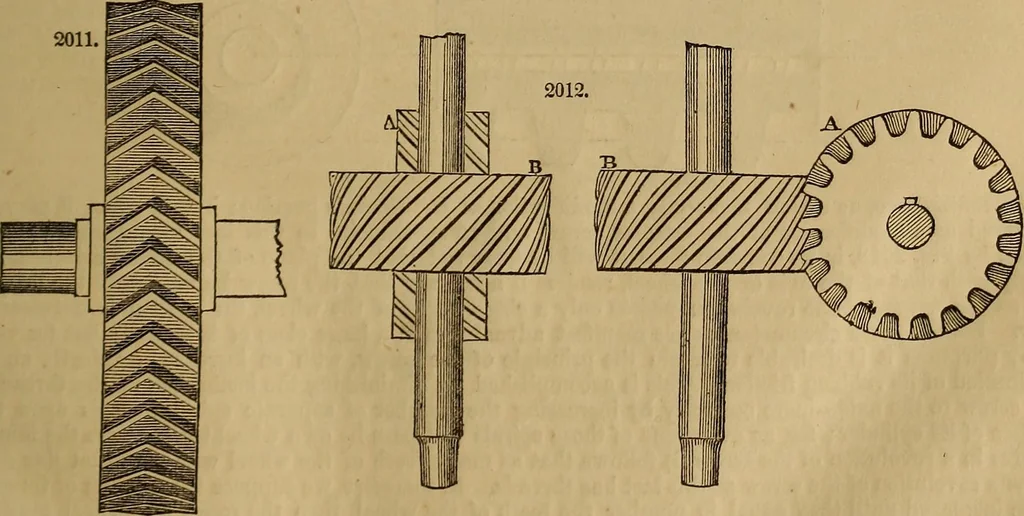

In a pair of wheels of this construction it is easy to perceive that the contact of the teeth will beaiarery instant at a single point, which, as the wheels revolve, will travel from one side to the other, afresh contact always beginning on the first side immediately before the last contact has… … opposite side. The contact, moreover, being always in the plane of the centres of the pair, the actionh reduced to that of rolling; and as there is no sliding motion, there is consequently no rubbing frictionbetween the teeth. 12 GEERTNG. The motion of wheel work of this description is remarkably…
