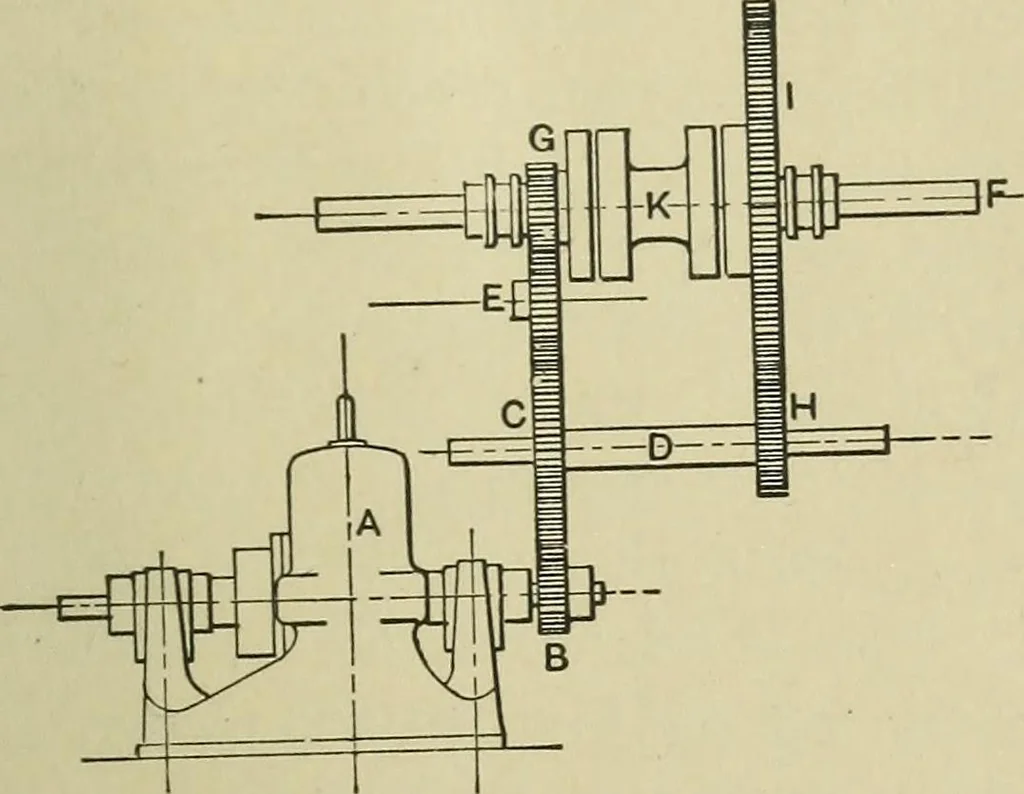

ELECTRIC POWER AND DEVICES. 179 … 432. ELECTRO-MAGNET-IC CLUTCH. Reversechange speed from a singlepinion. A is the motor andB the motor pinion, drivinga gear C which is keyed to ashaft D. From shaft D themotion can be transmitted toshaft F, either through gearsC E and G, or through gearsH and I—the clutch arrange-ment being the…
