A short treatise on the designing and construction of gearing and mill-work. Accompanied by an explanation of the construction and use of the odontograph of Prof. Willis .. (1873)

[Scott, David] engineer. [from old catalog] · New York, D. Appleton and company · leaf 37

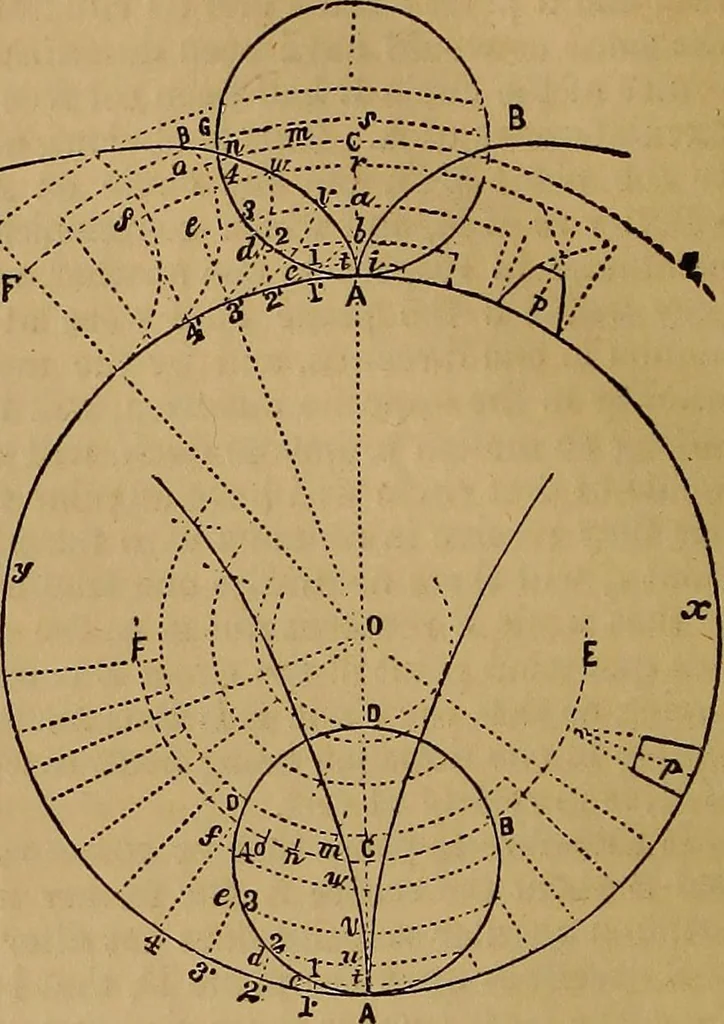

An illustration from A short treatise on the designing and construction of gearing and mill-work. Accompanied by an explanation of the construction and use of the odontograph of Prof. Willis .., 1873, leaf 37
points 1, 2, 3, they will intersect each other successively 2027. at the points cde, Take now the distance 1 to c, and set it oif on the same arc from the point of intersection of theradius AC to t\ fti like manner, set off the distance 2 to d,from h to w, and the distance 3 to e from a to v, and…
