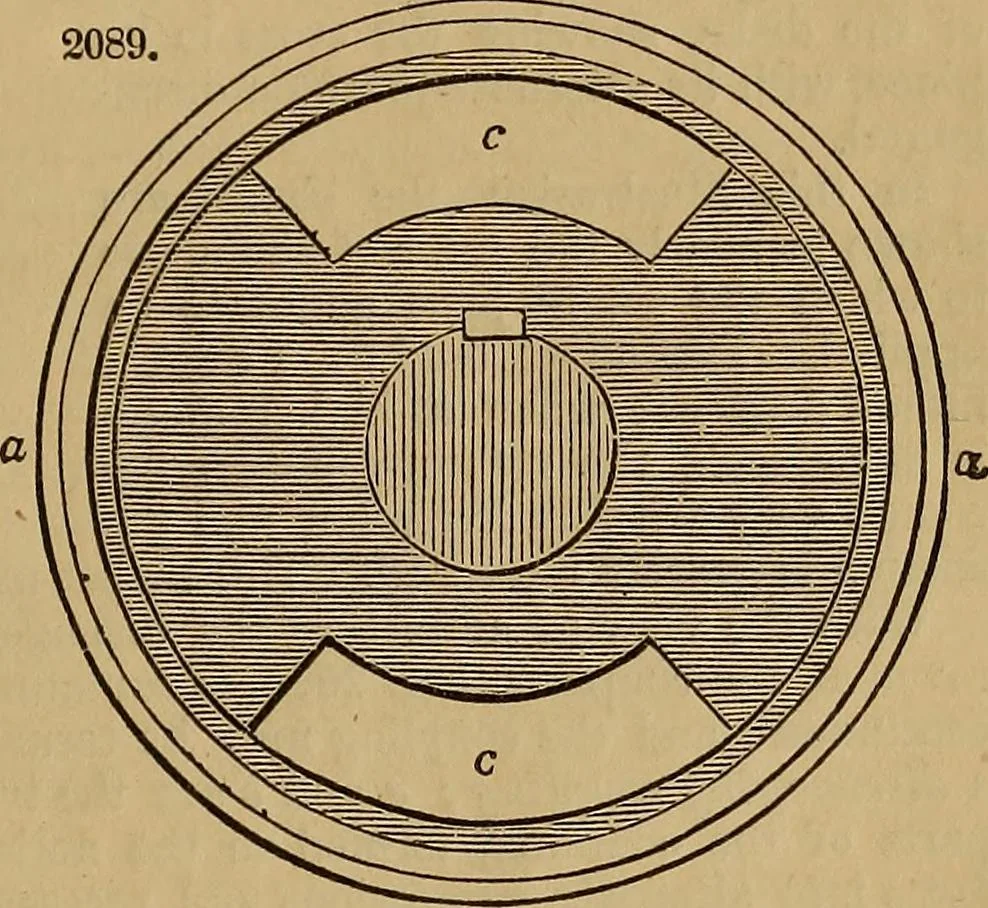

An illustration from A short treatise on the designing and construction of gearing and mill-work. Accompanied by an explanation of the construction and use of the odontograph of Prof. Willis .., 1873, leaf 78
the shaft. The shaft is now put into alathe, and the coupling is faced ; that is, the faces of thecouphng which are to be bolted together are turned, so that they are perfect planes, at right anglesto the shaft. The bolt-holes on the two portions should correspond exactly. They are therefore… … 2090.
