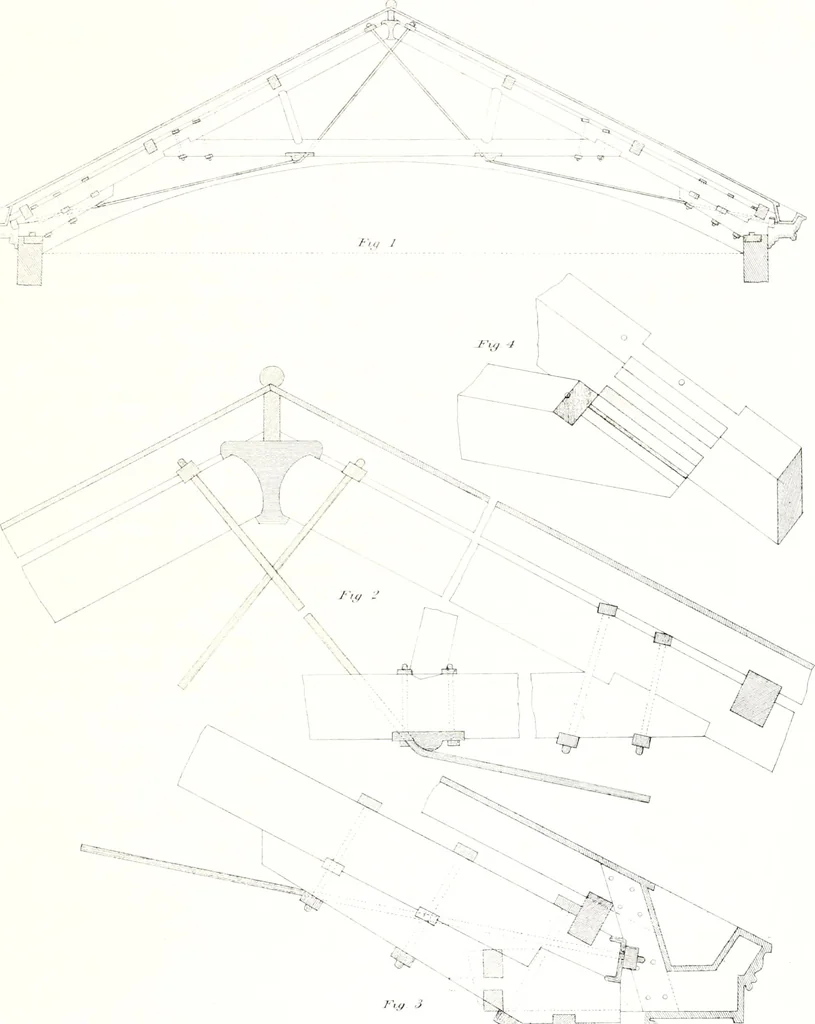

ok-outjoists; the manner in which the heel-piece is bolted to the principal; and also how the lower endof the camber-rod intersects the rafter and is secured. Fig. 4 shows the manner in which thecollar-beam is connected with the lower side of the principal-rafter. Tie-beams T X 1-t inches, j… … ti. 1 J ^ «v^«*;<;m«* V-OSsittiial sl^itt fh:. SPIRES, THEIR PROBABLE ORIGIN AHD PECULIARITIES OF STYLE. Having reviewed Domes and Koofs, briefly noticing their most remarkable features,and giving such historical information in regard to their origin and progress as mightbe deemed interesting,…
