Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work (1899)

Watson, Egbert P. (Egbert Pomeroy) · New York, D. Van Nostrand company · leaf 26

An illustration from Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work, 1899, leaf 26

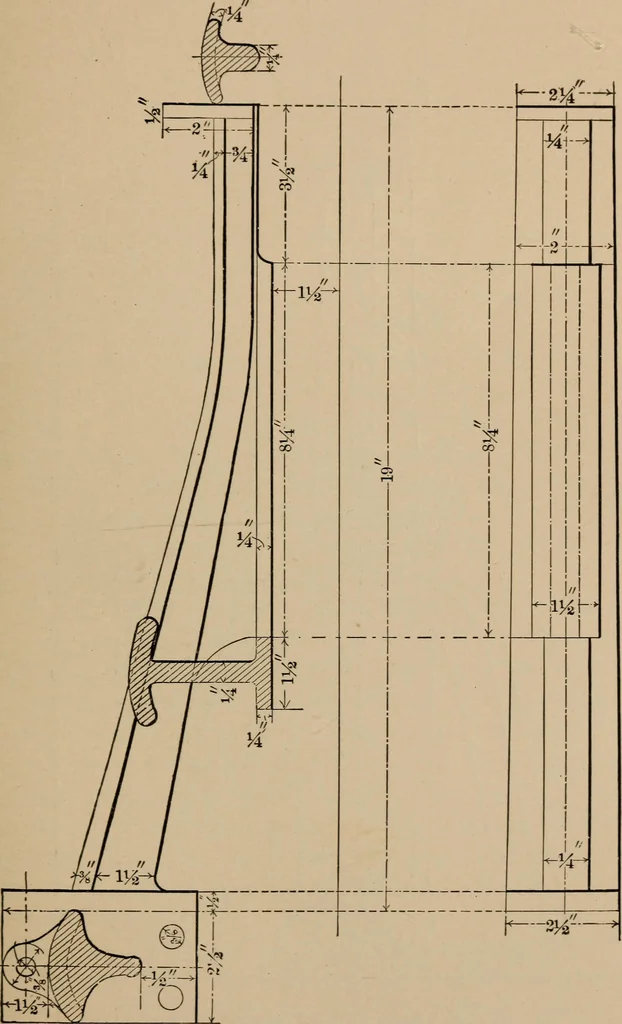

forthat depends upon what sort of a connection isused to support the cylinder. Suppose a bracketto be cast on the cylinder at D, then the heightof the frame would be from the under side of thebracket to the top of the bed-plate and is easilyarrived at. This is briefly the method of getting the… … // w .// Fig. 3. Frame of Launch Engine, 3 x 4 IO SMALL ENGINES AND BOILERS.
