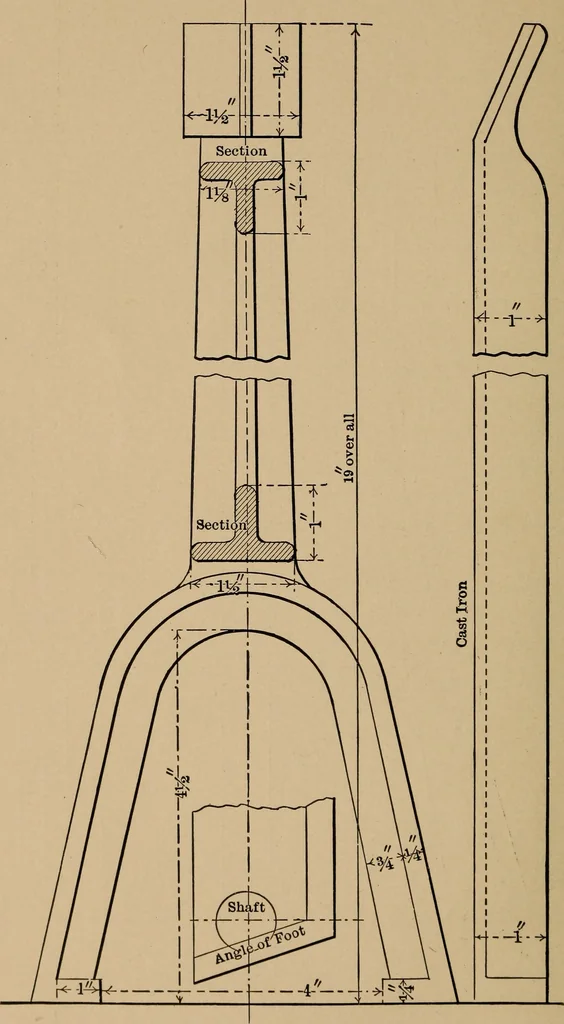

// w .// Fig. 3. Frame of Launch Engine, 3 x 4 IO SMALL ENGINES AND BOILERS. … Fig. 4. Back Leg of Frame, 3 x 4 CHAPTER III. The plan mentioned having been followed, weare then ready to design details, and the cylindernaturally comes first: it is shown marked fin-ished sizes, Figs. \a and 5, and, as will be seen, isfor a model engine of 3-inch cylinder by 4-inchstroke. This…
