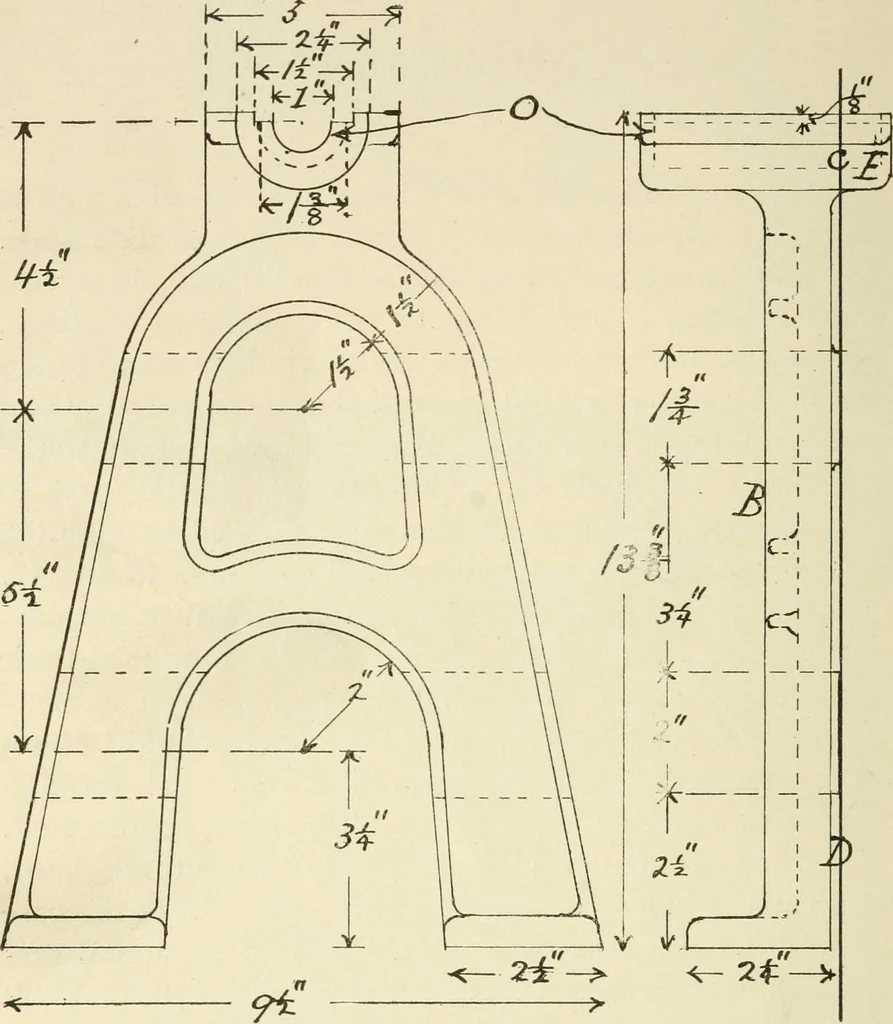

thdrawn from the mold. Itwill soon be seen that the best way will be to have the facemarked B (Fig. 46) down in the nowel; thus there will beleft an almost flat surface for the molders parting, whichwill then occur along line C D. It will, of course, be neces- 84 WOOD PATTERN MAKING sary to make… … Fig. 46. method now to be described of laying out and buildingthis pattern, may be used in building any pattern of this PLATE WORK AND IRREGULAR PARTING 85 general type ; modifications of it may be introduced whenneeded. The first step to be taken in making this pattern isthe making of two pieces…
