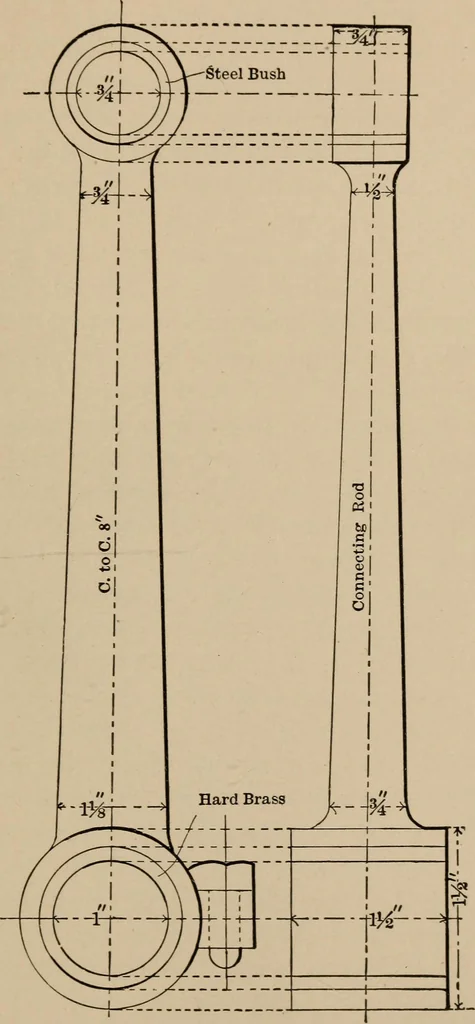

n the centres, or by putting thecross-head upon the face-plate ; the ends beingturned true it is chucked and the hole for the roddrilled and tapped. The wrist-pin hole is thenbored, and the job is complete except finishing,and drilling and tapping the holes for the gib-screws ; these last should be… … Fig. io. 38 SMALL ENGINES AND BOILERS. The crank-pin should have a I hole boredthrough it to lighten it up, and it must be a driv-ing fit in the crank-eye. When put in the crank-eye is to be heated a little so as to expand it, thepin inserted, and riveted over afterward ; the shaftis also of…
