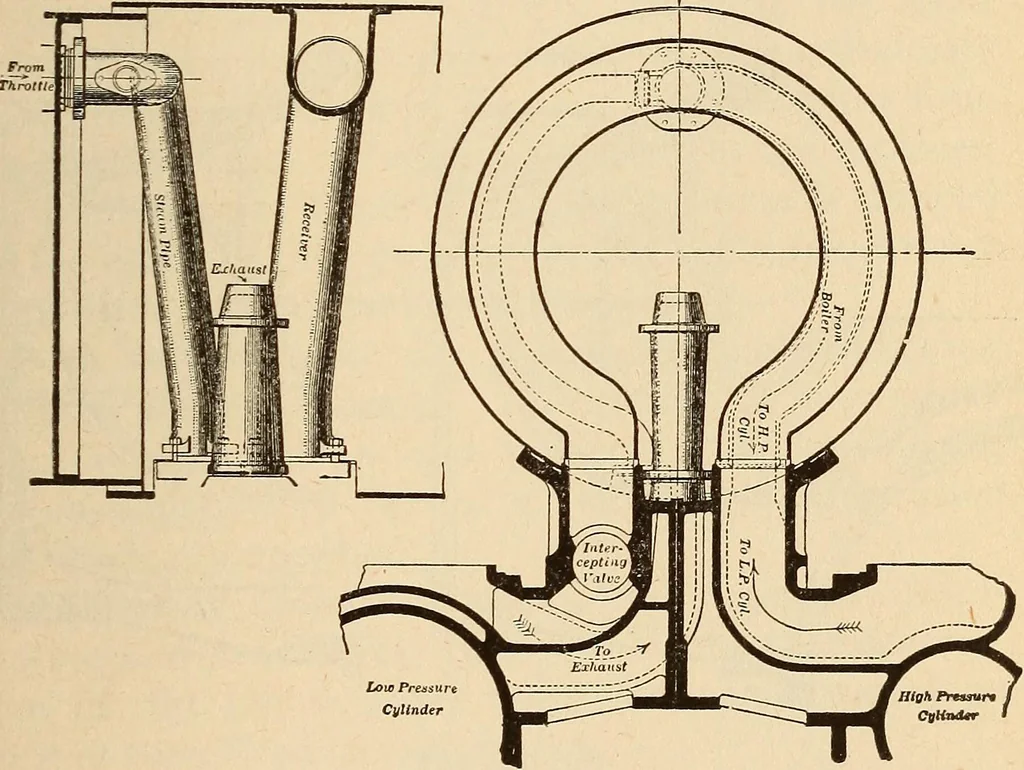

closes, as it is evident that there is nofurther need of liv^e steam in the receiver. A further function of the reducing valve is to regu- COMPOUND LOCOMOTIVES 315 late the pressure in the receiver so that the total pres-sure on the pistons of the high and low-pressurecylinders may be equalized.… … Figure 151 reducing valve C is operated automatically by thepressure in the receiver. To this end the port E isprovided, communicating with the receiver, and the^pace in front of the reducing valve; as the pressurerises the steam acts on the large end of the reducingvalve, causing it to move…
