Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work (1899)

Watson, Egbert P. (Egbert Pomeroy) · New York, D. Van Nostrand company · leaf 97

An illustration from Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work, 1899, leaf 97

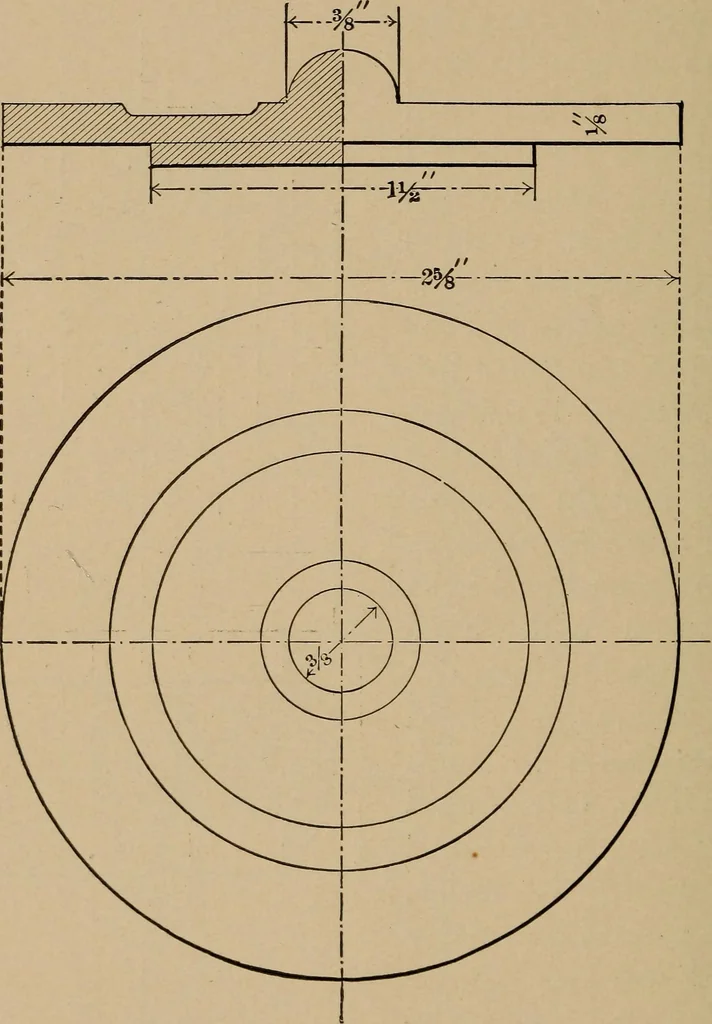

8o SMALL ENGINES AND BOILERS. The fly-wheel may seem small to some, but itscircumferential velocity is high, over 1,200 feet … Fig. 24. per minute at 600 revolutions per minute, but itis amply strong to do its work. It is very neces-sary that it should be absolutely true at this SMALL ENGINES AND BOILERS. 8l speed, and it should be secured by a key sunk inthe shaft; this key way must be cut before theshaft is finally…

Steam-engines
