Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work (1899)
Watson, Egbert P. (Egbert Pomeroy) · New York, D. Van Nostrand company · leaf 98

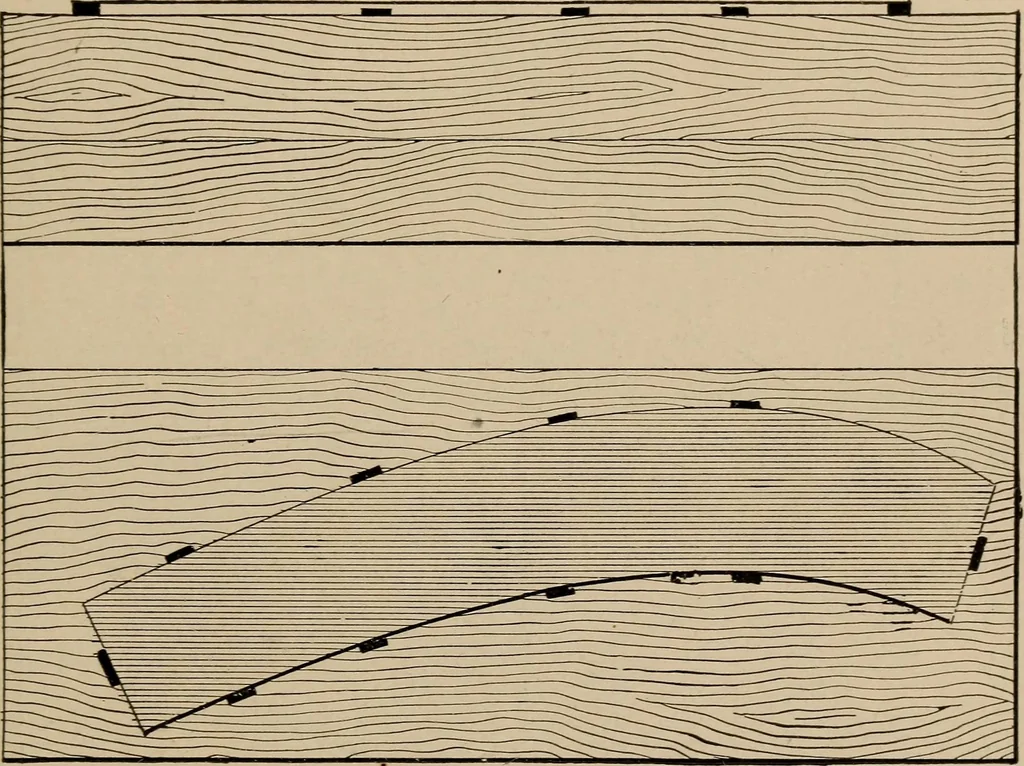

Fig. 24. per minute at 600 revolutions per minute, but itis amply strong to do its work. It is very neces-sary that it should be absolutely true at this SMALL ENGINES AND BOILERS. 8l speed, and it should be secured by a key sunk inthe shaft; this key way must be cut before theshaft is finally… … Fig. 25. found wholly satisfactory in action. The methodof setting* the valve is the same as that shown forthe vertical engine. Now let us consider a few points in regard tofinishing details which sometimes puzzle amateurs.There are parts sometimes which are very thin 82 SMALL ENGINES AND BOILERS.…
Steam-engines
