Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work (1899)
Watson, Egbert P. (Egbert Pomeroy) · New York, D. Van Nostrand company · leaf 99

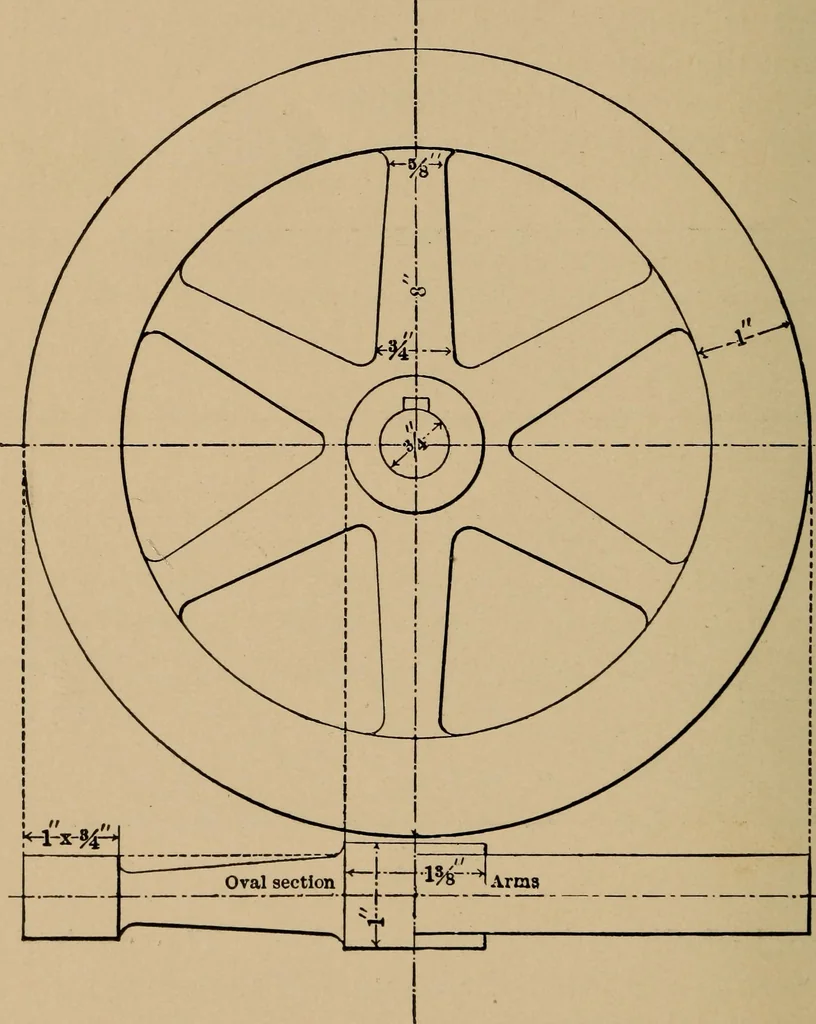

Fig. 25. found wholly satisfactory in action. The methodof setting* the valve is the same as that shown forthe vertical engine. Now let us consider a few points in regard tofinishing details which sometimes puzzle amateurs.There are parts sometimes which are very thin 82 SMALL ENGINES AND BOILERS.… … Fig. 26. Fly-Wheel of Horizontal Engine. in the engraving. Get a piece of hard wood,preferably of the right size, and plane it true on SMALL ENGINES AND BOILERS. 83 one face ; then nail a strip on the back about aninch square to catch it in the vise. Take thepiece to be draw-filed and, laying it on…
Steam-engines
