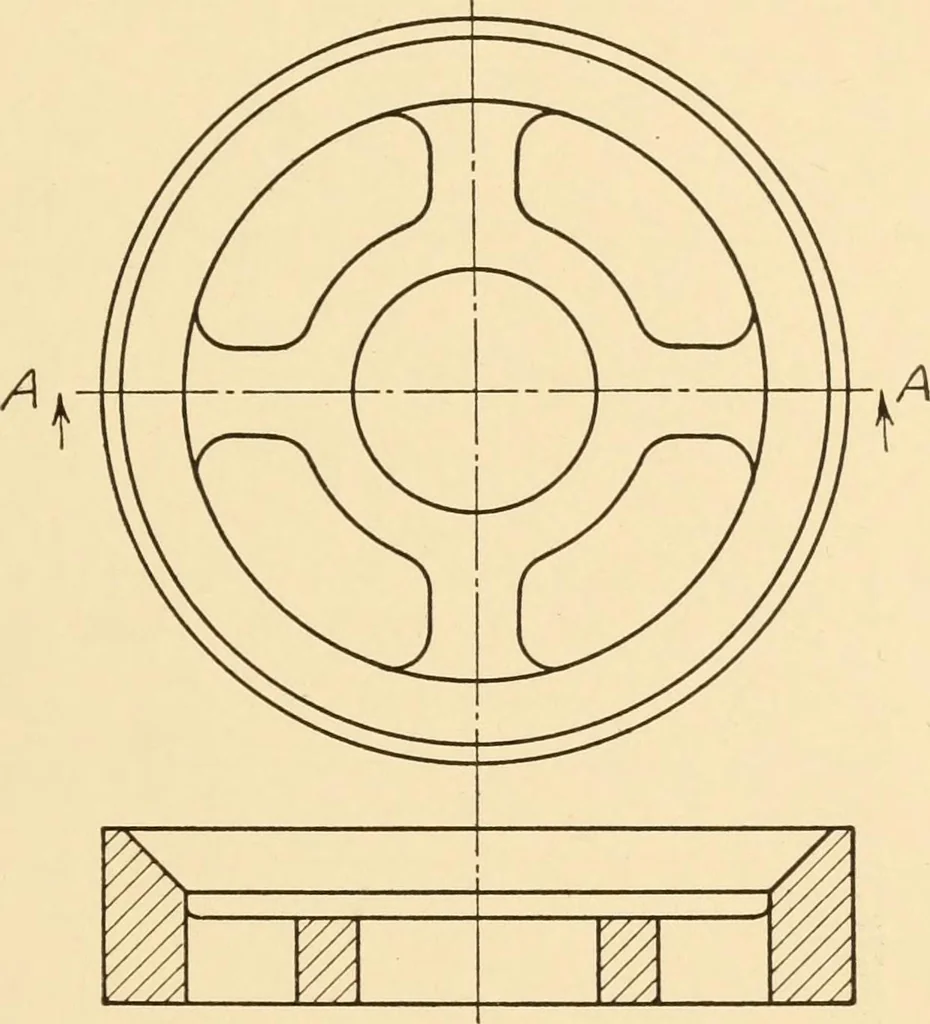

T^ T 1 i_ r . V Fig. 91. Tapered Piece with Section. arms, etc., are not sectioned for this reason, Fig. 92. Good practicerequires the arms, ribs, etc., to be shown in their true length rather than … Fig. 92. Section through Rib. as they would project. Fig. 93 at I is a true projection but better prac-tice is shown at II.
