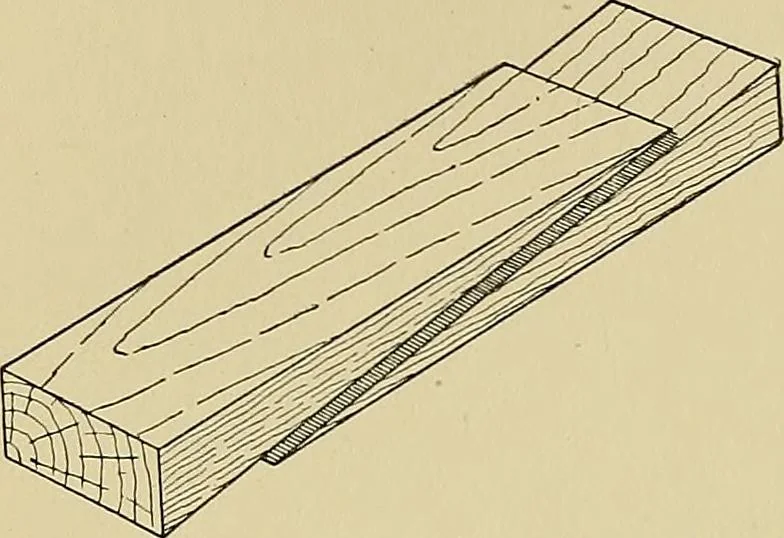

Fig. 60. Beveled Splice for Tension Fig. 61. Beveled and Keyed Splice forTension Fig. 62, each part in the shape of a wedge, so that when they aredriven into place a tight joint may be obtained. The two wedge-shaped pieces may be driven in from opposite sides, the hole 67 58 CARPENTRY … Fig. 62. Key for Beveled and Keyed Joint being a little smaller than the key. If the key is made much toolarge for the hole, however, a so-called initial stress is broughtinto the timbers, which uses up some of their strength even before any load is applied. This should beavoided. If it is desired,…
