Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils (1920)
Stoller, Hugh Montgomery, Austin, F. E. (Frank Eugene), 1873-, Seeger, Edwin Wilbur, 1892- joint author, American Technical Society · Chicago, American Technical Society · leaf 246

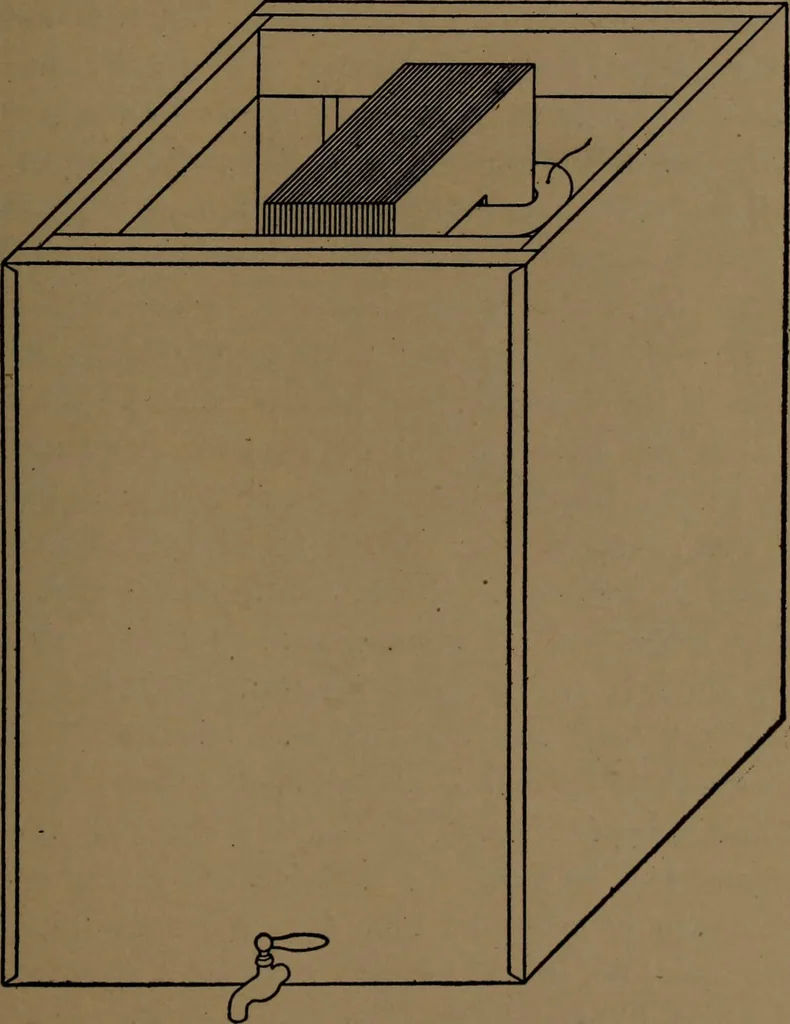

MALL TRANSFORMERS 89 3 inches wide by | inch thick. The framework may be providedwith cross strips across the bottom side strips, properly spaced toallow the iron core of the transformer to rest on them. The coremay be prevented from sliding about by small blocks properlyarranged and screwed to the… … Fig. 47. Completed Oil-Case for Transformer metal box oil-tight. The wooden framework makes the case stiff,and the thin roofing tin provides a light covering. A faucet may be soldered into one side near the bottom tofacilitate the removal of the oil when necessary. The primary and secondary…
Electric motors · Electric transformers · Electromagnets · Induction coils
