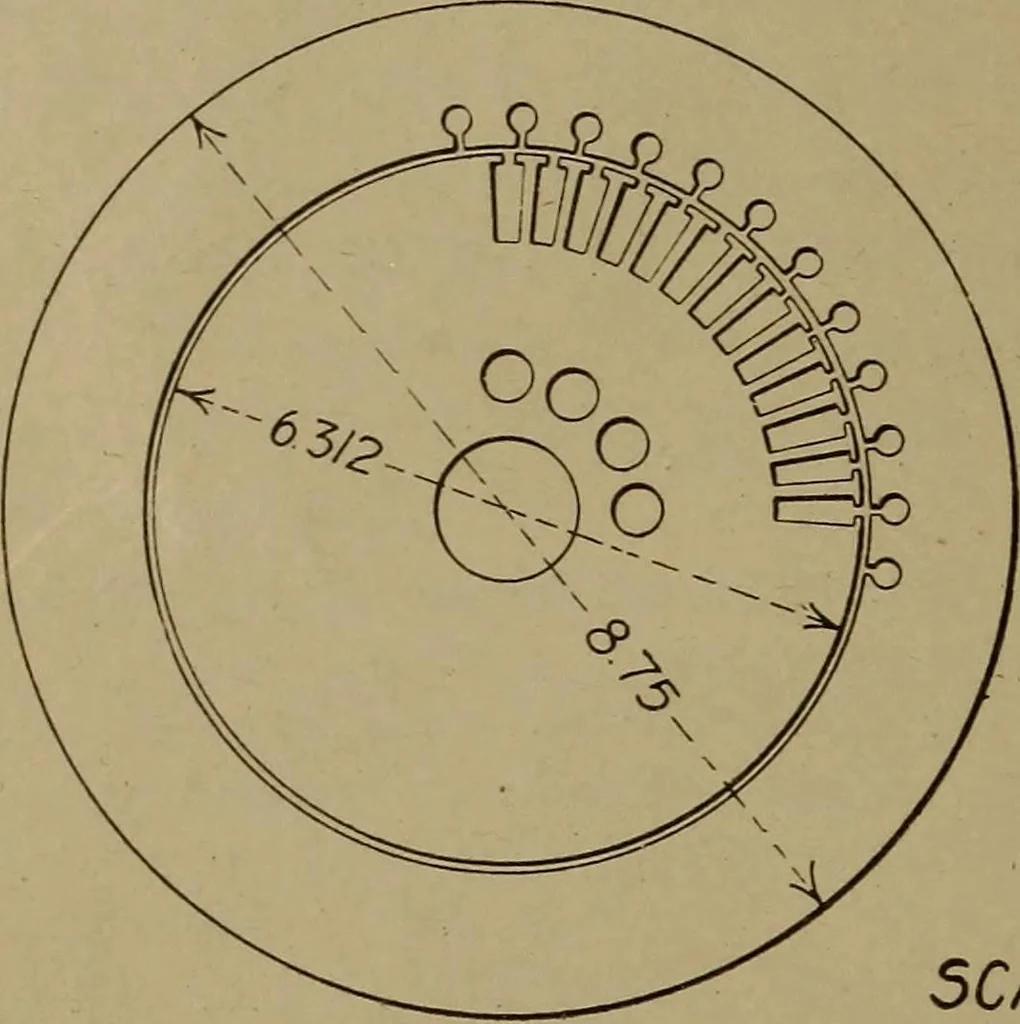

An illustration from Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils, 1920, leaf 87 — 4 DESIGN OF SMALL MOTORS 0.413 inch, and the length of the armature will be 2.5 inches,so that the flux through a tooth in the region of crest densityvnW be 0.413X2.5X25000, or 25800 lines. TYPE-SA. FORM-51. FRmt-m FRAME LENGTH = 2,5AIR 6AP =.012 PR/MARY-48 5L0T55L0J DlPJtl = 75AVE WJDW - .203SLOT… … TYPE 5A. FORM SI. FRAME 165.MAIN WINDING
