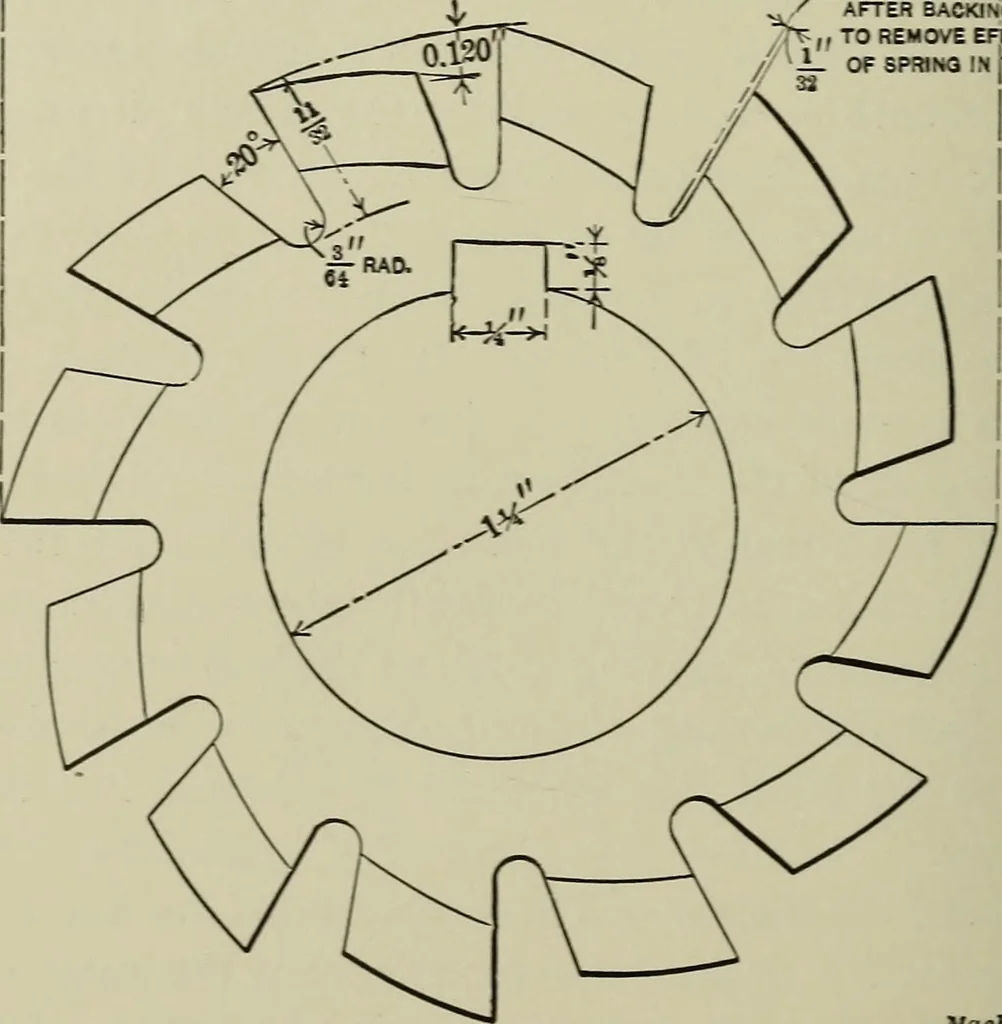

way and the bottom of the flute. If we use a3-inch bar we can turn a hob blank 2J inches in diameter from -25^- ^ REfACE EACH TOOTH AFTER BACKINQ-OFF ,, TO REMOVE EFFECTS / 11 OF SPRir*Q IN JOOL … Machinery Fig. 13. Hob with Twelve Gashes or Flutes this, which would allow sufficient stock to be turned from theouter portion of the bar to remove the decarbonized surface.If we make the blank 2f inches in diameter we have 3^2 i^^h ofstock over the ke}way, which is sufficient. Number of Flutes. —…
