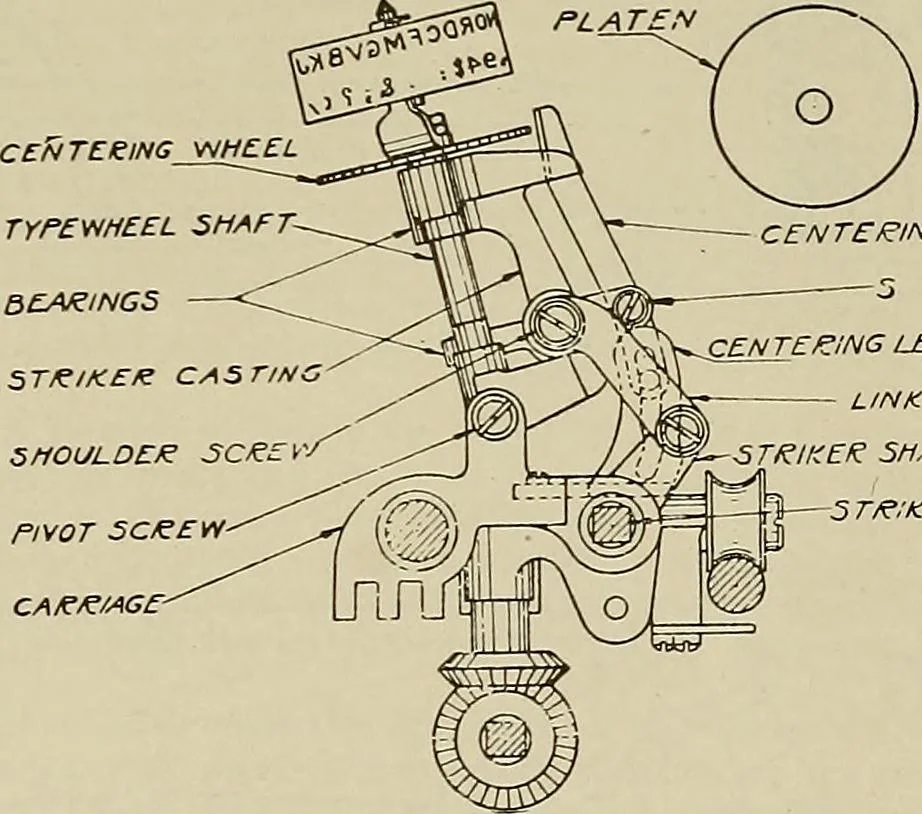

SPINPLE spk/ng cuptypewheellocatingTarmhollow shaftshift plungershift clutch COLLAR UNIVERSAL JOINTCARRIA6E SHAFTCARRIAGE INK ROLLER PLATEN GUIPE WHEELGUIPE RAIL BEVEL GEARS Fig.Kll … TEEING lEVEZ <\FTLEVER■KEZ SHAFT Fig. 12 This motion is transferred through the striker shaft lever and link to the striker casting(Fig. 12). This casting is pivoted upon two screws passing through lugs on either sideof the carriage casting and has two bearings through which the typewheel shaft…
