Specifications for the multiplex printing telegraph system : theory and operation (1920)
Western Union Telegraph Company · [New York?] : The Company · leaf 72

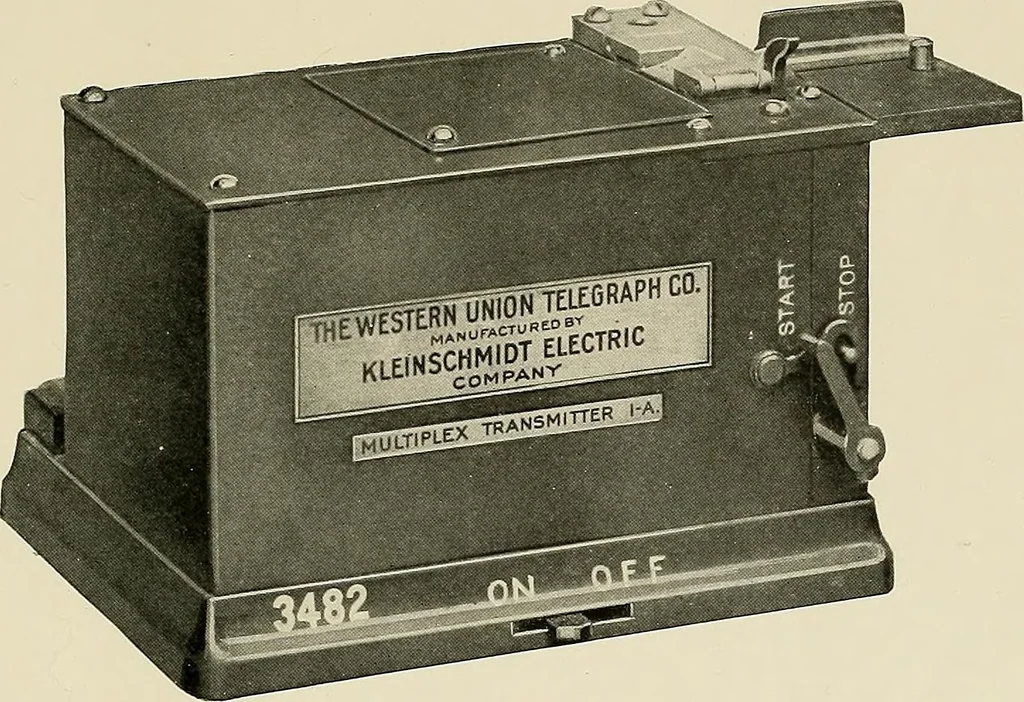

INCLUDED: None.PHOTOGRAPHS AND DRAWINGS:Figure No. Drawing No. 1 Photograph 2 22341-3-A-B 22342- 4 22344- 5 22345- 6 22346- 7 22347- 8 22348- TitleTransmitter 1-A.Transmitter 1-A. Transmitter Stop Latch Mechanism.Transmitter 1-A Wiring Diagram.Transmitter Feed Wheel Adjustment.Transmitter Jockey… … Fig. 1 Page 1 Section 3 Multiplex System 263-C MULTIPLEX TRANSMITTER 1-A 1. The transmitter (Fig. 1) as described in Section 1 is an electrically operateddevice for setting up on the distributor segments the combinations of positive and nega-tive impulses, corresponding to the various characters…
Telegraph
