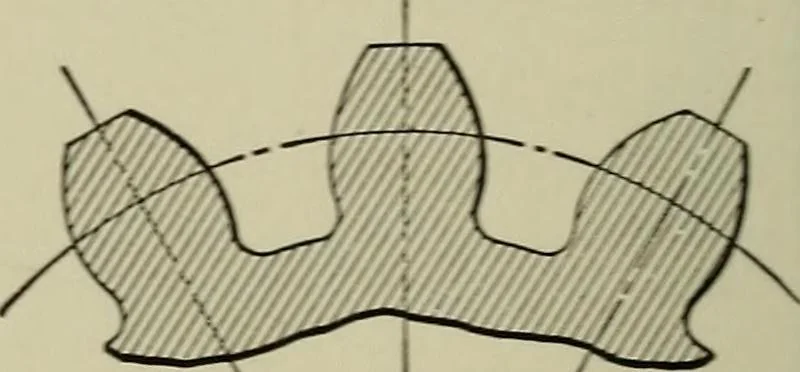

12 TOOTH STUB•ANGLE CF PRESSURE \ / 12 TOOTH INVOLUTE I4^T!ANGLE OF PRESSURE Fig. 8. Comparison between Standard and Stub Type of Gear-teetli largely eliminated from the stub-tooth gear, due to the com-bination of the short tooth and the increased pressure angle.It will also be noted that in the…
