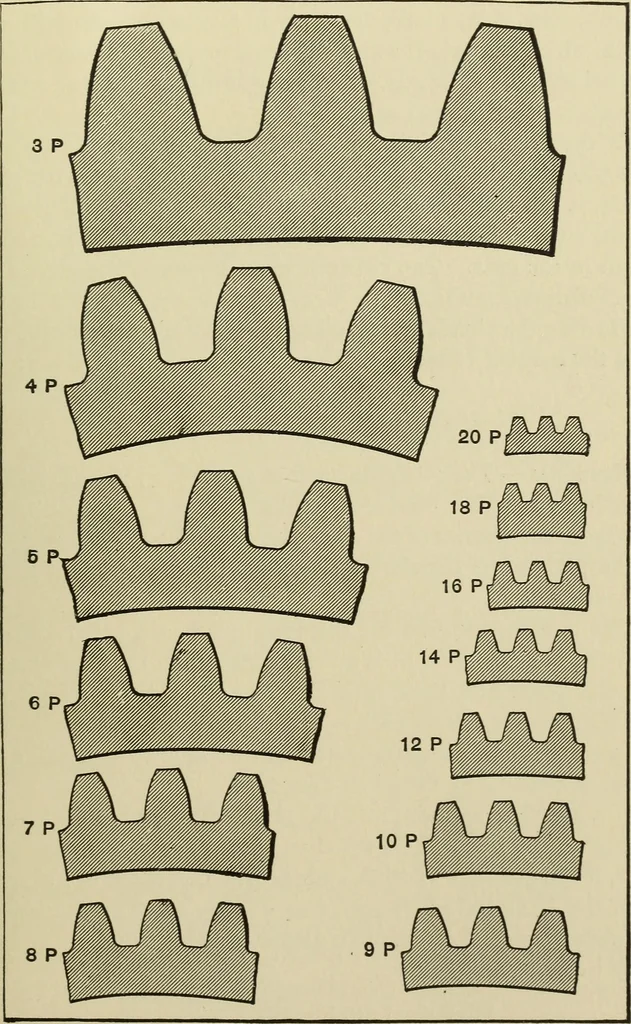

ggear enter into the spaces between the teeth. The clearance is the amount by which the tooth space is cutdeeper than the working depth. The face of the tooth is that part of the tooth curve that isbetween the outside circumference and the pitch circle. The flank of the tooth is that part of the… … Fig. 8. Gear Teeth of Different Diametral Pitch shown in Full NaturalSize in order to enable the Designer to Determine at a Glance theActual Proportions of Gear Teeth of Various Pitches 12 SPUR GEARING Circular and Diametral Pitch. — The circular pitch, at thepresent time, is, as a rule, used only…
