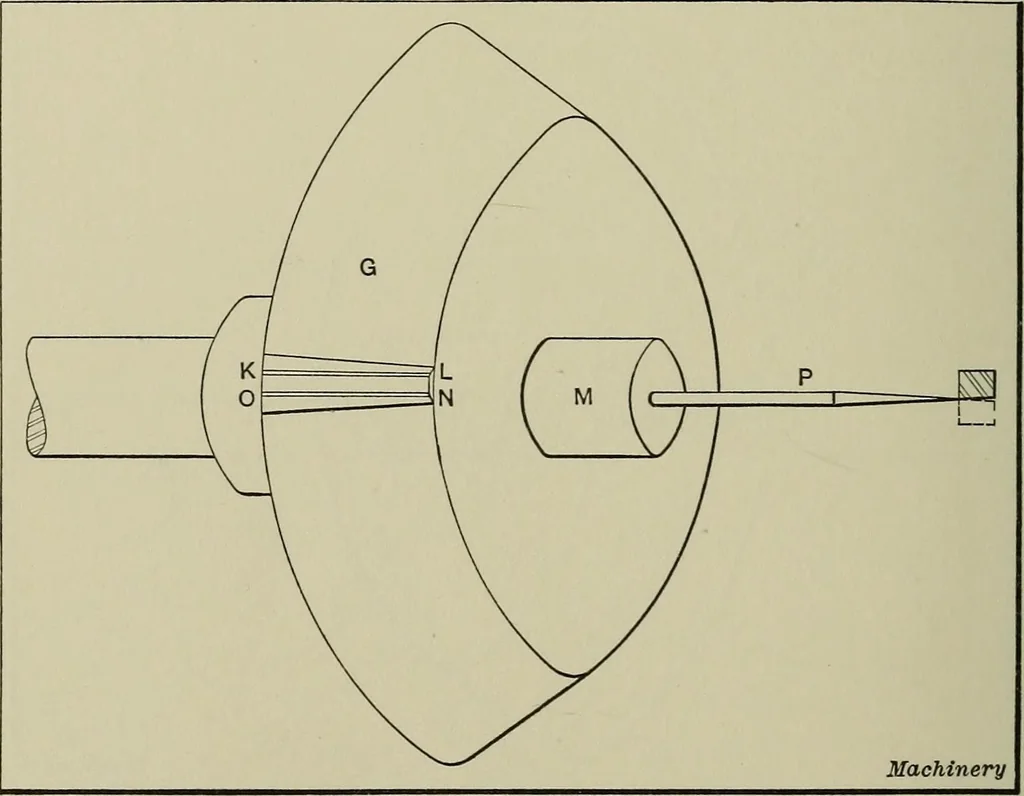

remain in any position. Byplacing a straightedge against the face of the gear blank, in twoor three different positions, and sliding pointer P in or out, asmay be found necessary, its sharp end can be made to coincidewith the axis of the cone. The milling machine table is next adjusted vertically,… … Fig. 7. Method of setting Gear Cutter for taking Second Cut to the left and the pointer removed from the mandrel, after whichthe first cut is taken. When the cutter has been located by thismethod, the pitch line of the tooth face KL coincides with anelement of the cone. After the first tooth has…
