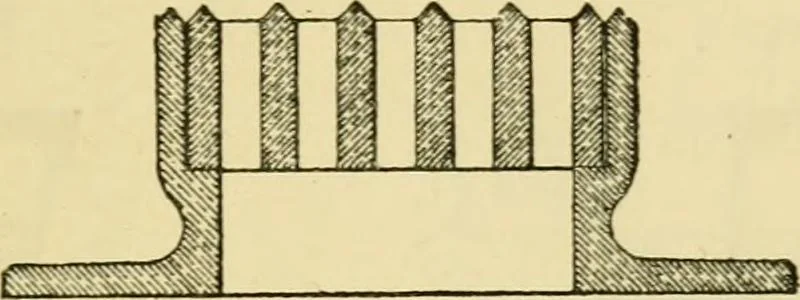

pe built into a chamber of brickin cement is one of the simplest methods. The outlet shouldhave a strong cast-iron grating (bedded on cement brickwork),as shown in Fig 21. The inside surface of the brickwork, atboth ends of the pipe being rendered J-inch thick with Portlandcement. DRAINAGE. 45 Yard… … Section fi.B 1 Y-JA > < ^ < > < X V t . S S > < ^ < > X V \ < > <J ^.^ < X 1 •^.A -. /^ PLftM 18 inches diameter. The former is best suited for a large yard,where there is a considerable flush of water and a very smallpercentage of soil conveyed by the pipes ;…
