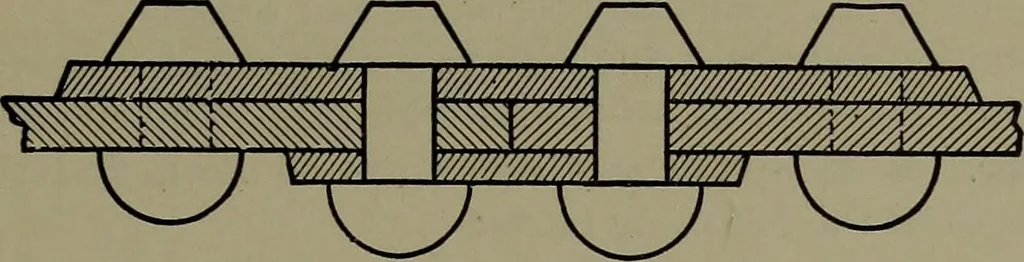

l, determine thickness of plate and pro-portion of joints. The net factor of safety at joints to be 5. RIVETED JOINTS 103 5. A marine boiler is 13 ft. 6 in. in diameter and 14 ft. long. The longseams are to be diamond riveted butt joints and the ring seams ordinarydouble riveted butt joints. The… … Fig. 31. 6. Design a diamond riveted joint such as shown in Fig. 31 for a steelplate f in. thick. Outer cover plate is f in. and inner cover plate is ^^ in.thick; the pitch of outer rows of rivets to be twice that of inner rows.Determine efficiency of joints. 7. The single lap joint with cover…
