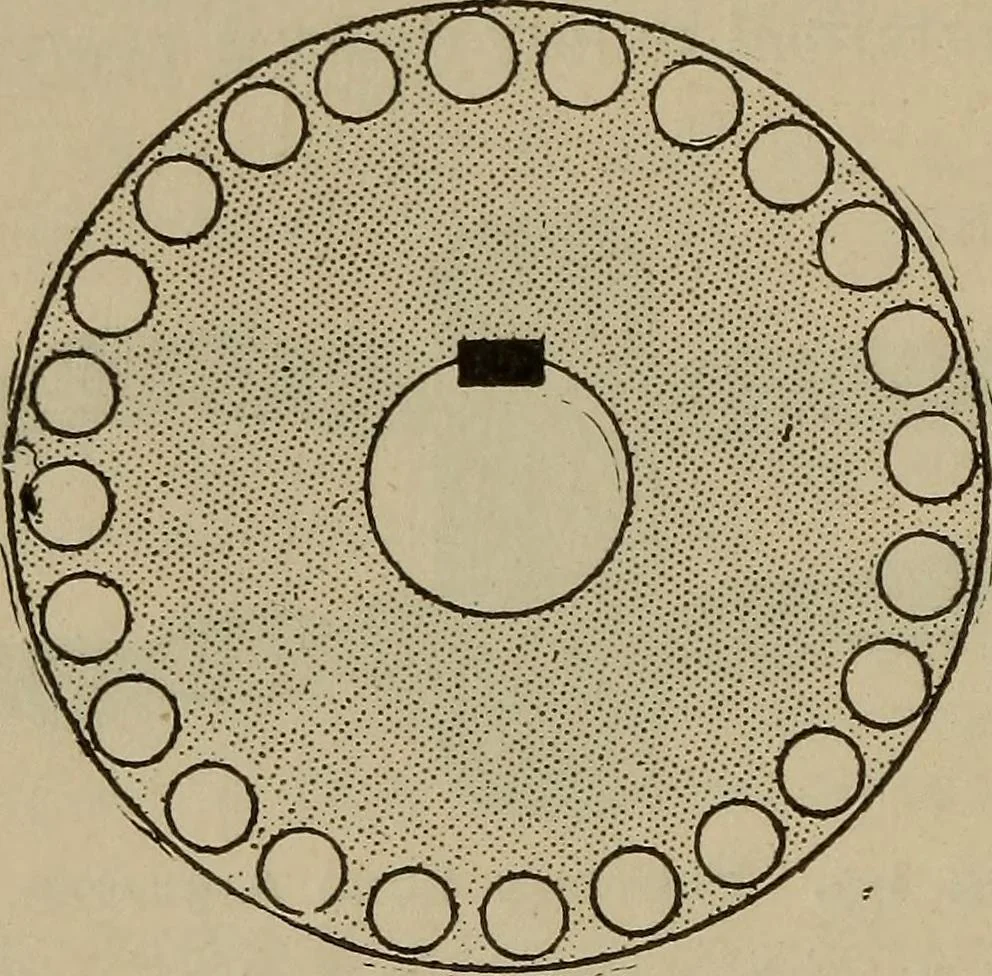

ripheral holes, and through thesethe conductors or windings are carried. The conductors are thusembedded in a mass of iron and are protected from eddy currents,and they act to reduce the reluctance of the air gaps. From a 154 STANDARD ELECTRICAL DICTIONARY. mechanical point of view they are very… … Fig. 114. Pierced or Perforated Core-disc. The plan is adopted principally on large cores. The discs thus madeup are placed together to form the core exactly as in the case ofordinary one piece discs. Core=discs, Toothed. Core-discs of an armature of a dynamoor motor, which discs are cut into…
