The standard electrical dictionary; a popular dictionary of words, terms, and phrases, used in the practice of electrical engineering (1897)
Sloane, T. O'Conor (Thomas O'Conor), 1851-1940 · New York, H. W. Henley & co. · leaf 453

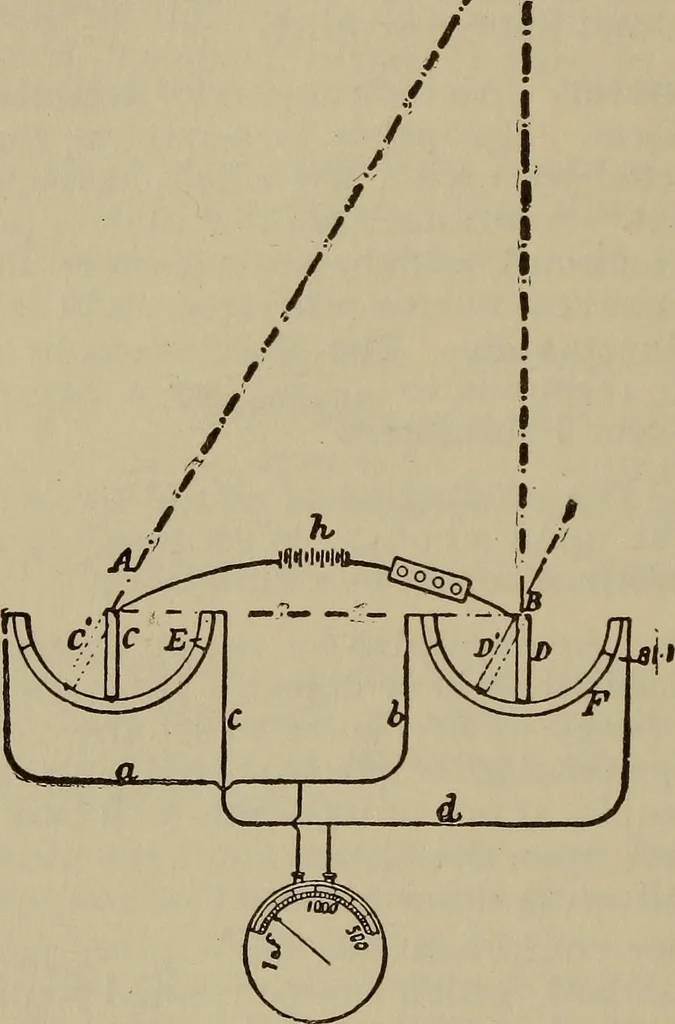

AB/sin A TB. 448 STANDARD ELECTRICAL DICTIONARY. If the two sectors are coupled up as shown, with a battery, h,and a galvanometer, by the wires, a b and c d, then since the arm,£, on being aligned on the object takes the position c1 while dremains at zero, the Wheats tone bridge formed by these… … [Fig. 281. Range Finder.increase with the angle AT B. In general, however, the angleA B T4 will not be a right angle, but some other angle cp. In thiscase A T= A B/sin A T B X sin A B T, and hence it will only benecessary to multiply the range reading on the galvanometer bythe sine of the angle A B…
