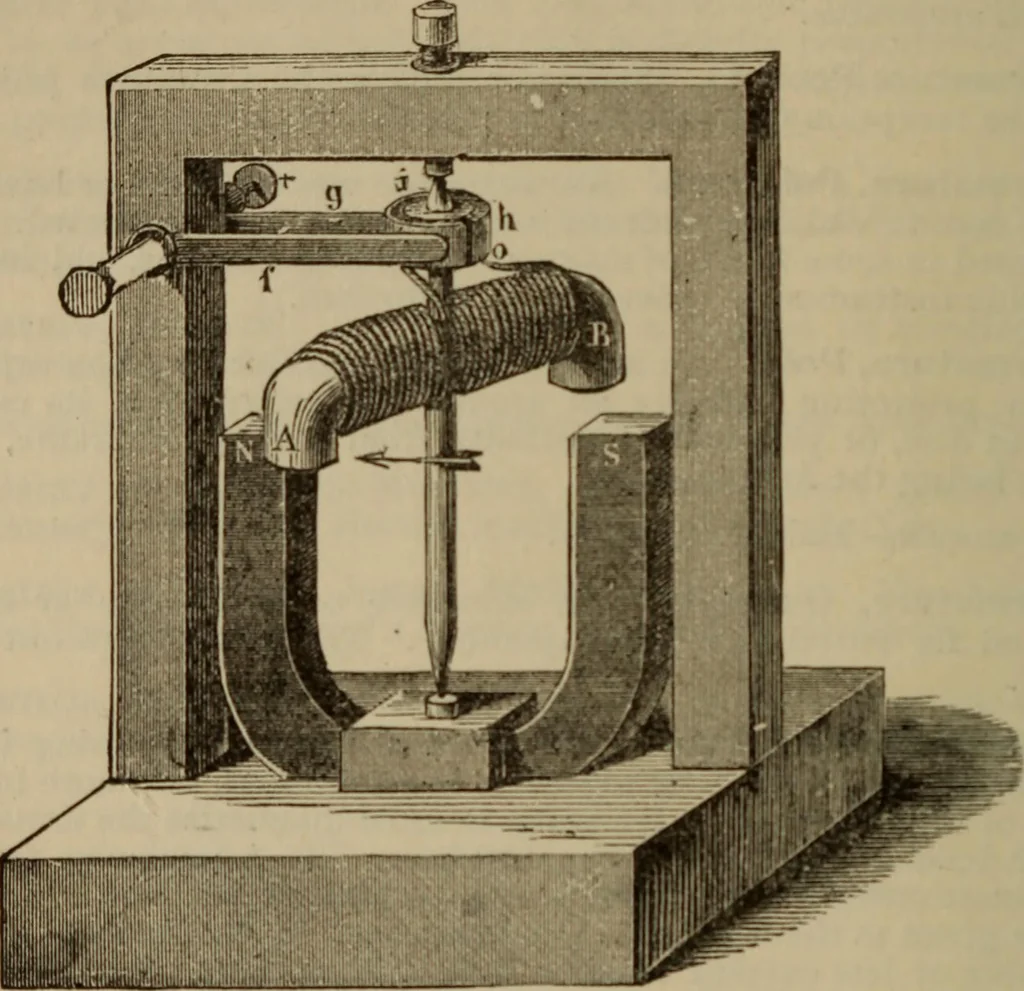

poles of the magnet. Then it is repelledfrom t: ad swings through [8o° to have its polarity reversed and to go through the- next l8o°, and so on. Thus it rotates at avery high rate of speed. •wing the elevation . /, Bt is the armature- ;- or brushes ; //, the commutator with its sections0, /. \\\… … Fig. 28. Pages Revolving Armature. Fig. 29. Section of Commutator of Pages Revolving Armature. W, fV, Brushes; A, Spindle ; S, S, Armature Segments. Armature, Ring. An armature whose core is in the shape of aring, as the Gramme Ring Armature. (See Figs, jj & j;.) STANDARD ELECTRICAL DICTIONARY.…
