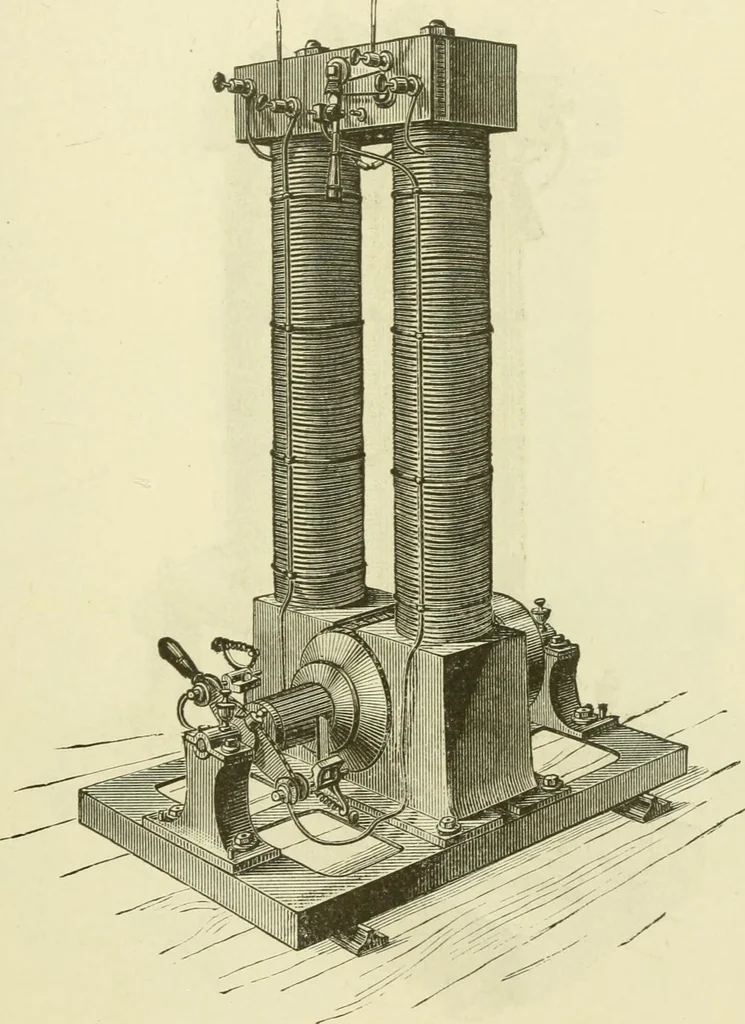

.5^ EDISON S INCANDESCENT SYSTEM. 139 armature, and generate the current. Their extremities corre-spond to disks of copper (at right angles to them) laid oneagainst the other at the ends of the cylinder and insulated fromeach other. Each bar is attached to these disks in such away as to form a… … Fcg. G3. bars, with the collector. Figs. 60 and 61 give an idea of thisnew arrangement. The centre of the cylinder itself is occupied,outside of the rotating axle, by a cylinder of wood, which inits turn is surrounded by a thick tube made of a series ofvery thin disks of iron, separated from each…
