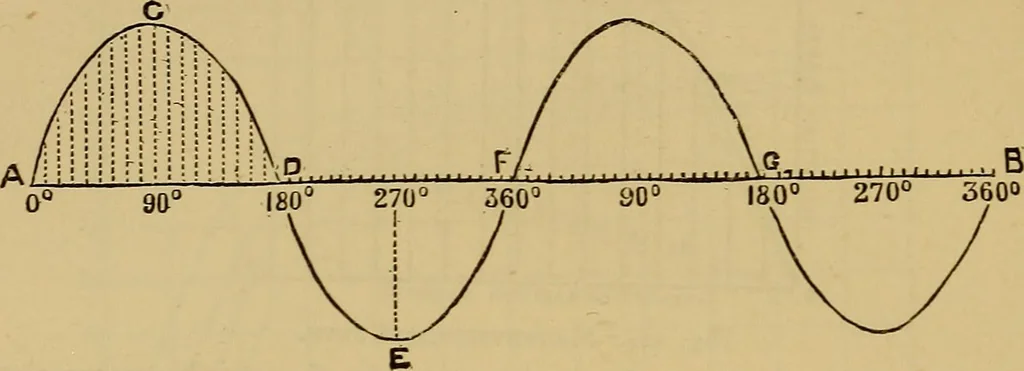

ength of path traversed by the point up to the expiration ofeach one of the given intervals of time. The abscissas are propor-tional to the times and the ordinates to the sines of angles propor-tional to the times. Thus if a circle be drawn upon the lineand divided into thirty-two parts of equal… … Fig. 127. Curve of Sines. Curve of Saturation of the Magnetic Circuit. A characteristiccurve whose ordinates may represent the number of magnetic linesof force induced in a magnetic circuit, and whose abscissas mayrepresent the ampere turns of excitation or other representative ofthe inducing…
