The standard electrical dictionary; a popular dictionary of words, terms, and phrases, used in the practice of electrical engineering (1897)
Sloane, T. O'Conor (Thomas O'Conor), 1851-1940 · New York, H. W. Henley & co. · leaf 179

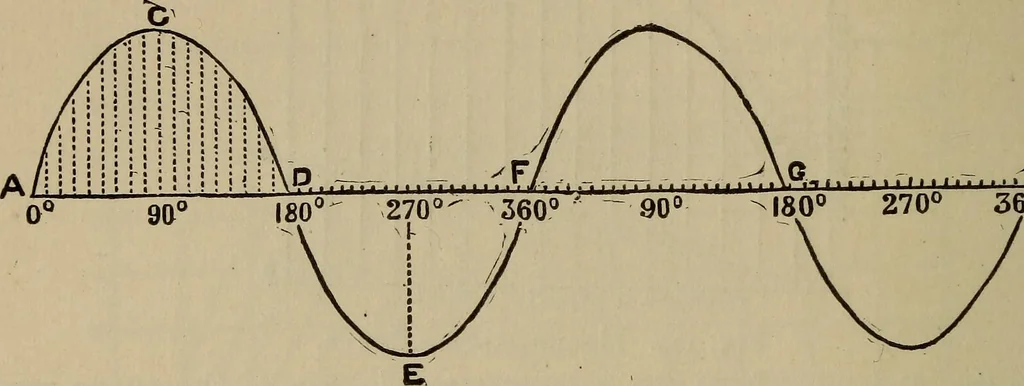

Fig. 125. Armature Curve. Fig. 126. Development of Armature Curve. Curve of Dynamo. The characteristic curve of a dynamo. (SeeCurve, Characteristic.) Curve of Sines. An undulating curve representing wave mo-tion. It is produced by compounding a simple harmonic motion,or a two and fro motion like… … perpendicular must be erected. The length of each must be equalto the length of path traversed by the point up to the expiration ofeach one of the given intervals of time. The abscissas are propor-tional to the times and the ordinates to the sines of angles propor-tional to the times. Thus if a…
Electricity
