The standard electrical dictionary : a popular encyclopaedia of words and terms used in the practice of electrical engineering (1898)
Sloane, T. O'Conor (Thomas O'Conor), 1851-1940 · London : Crosby Lockwood and Son · leaf 207

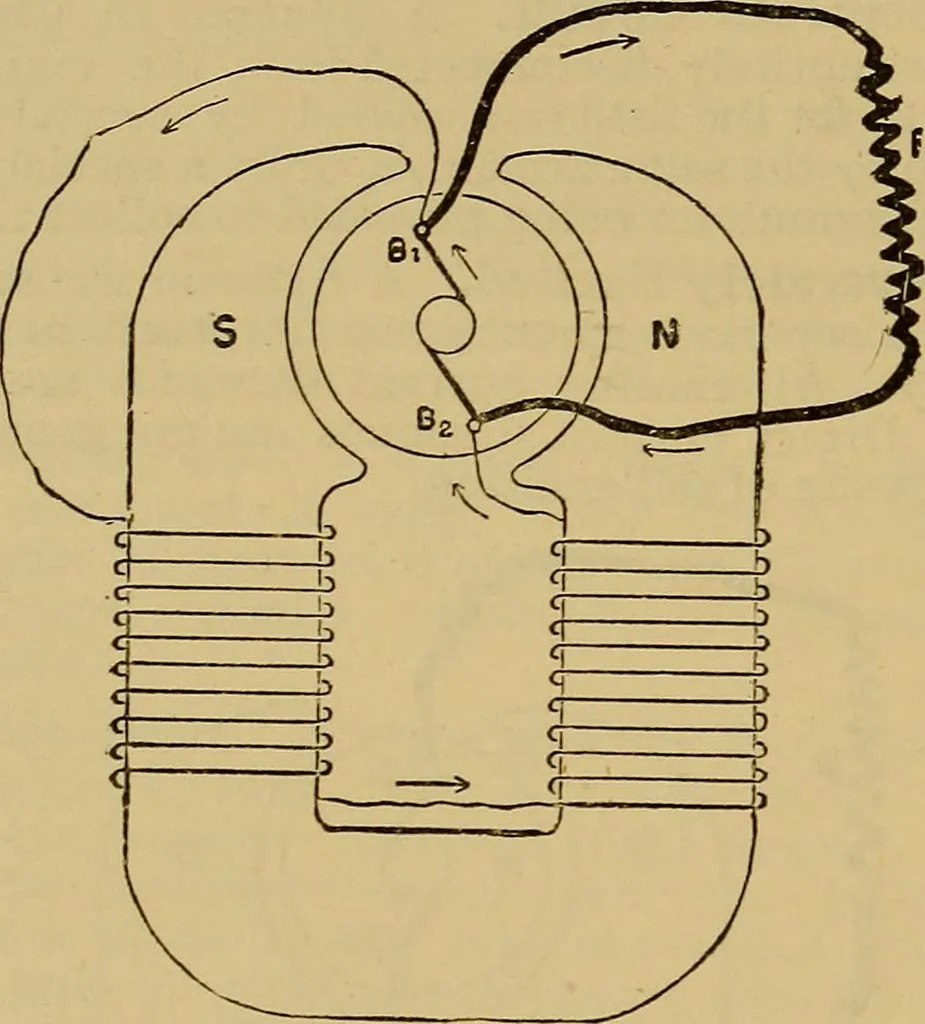

ro-mo-tive force and current strength and may injure the winding byheating the wire, and melting the insulation. Dynamo, Shunt. A dynamo whose field is wound in shuntwith the external circuit. Two leads are taken from the Thrushes ;one goes around the field magnets to excite them ; the other is… … Fig. 141. Shunt Dynamo. Dynamo, Single Coil. A dynamo whose field magnet isexcited by a single coil. Several such have been constructed, withdifferent shapes of field magnet cores, in order to obtain a properdistribution of poles. Dynamo, Tuning Fork. A dynamo in which the inductive orarmature…
Electricity
