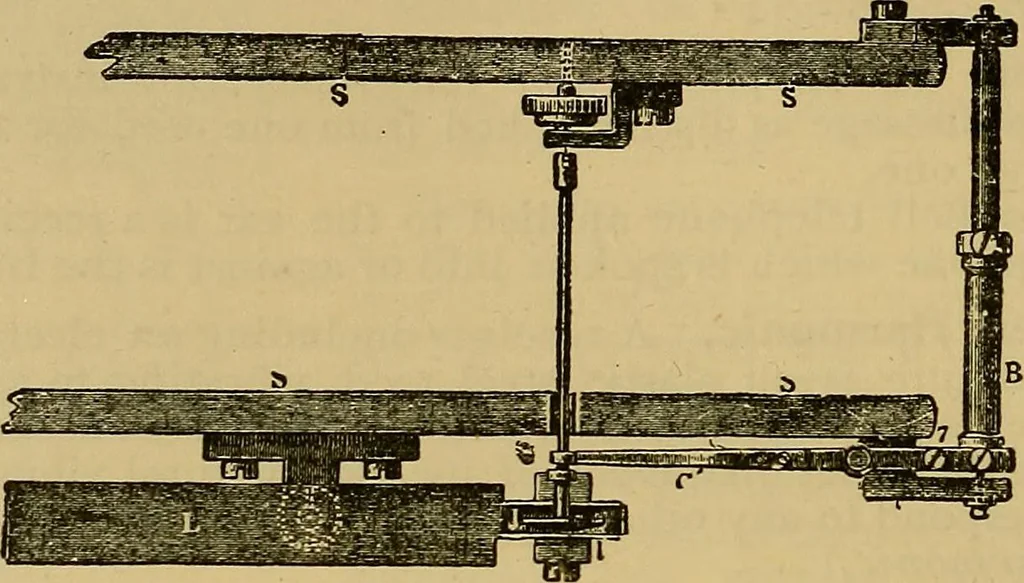

record- -£. 452 STANDARD BLBCTRICAL DICTIONARY. ing on a strip of paper the dots and lines forming Morse charactersas received over a telegraph line. Its general features are as follows:A riband or strip of paper is drawn over a roller wh ich is slightly-indented around its centre. A stylus or… … Fig. 285. Inking Roller Mechanism of Morse Recordbr. a current is passed through the magnet the armature is attractedand the stylus is forced against the paper, depressing it into thegroove, thus producing a mark. When the current ceases thestylus is drawn back by a spring. In some instruments a…
